Milwaukee MILW 48-89-2772

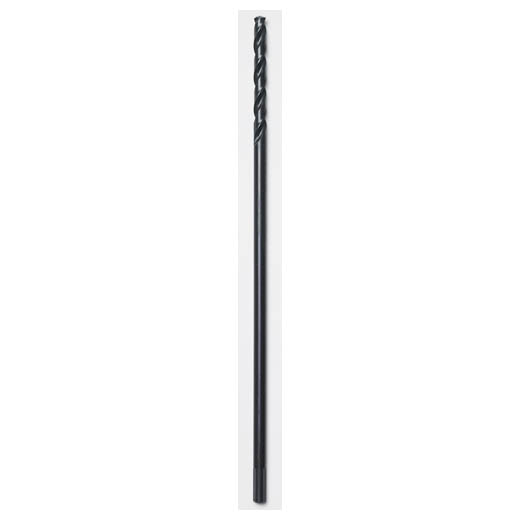

Milwaukee Thunderbolt 48-89-2772 Aircraft Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, HSS

UPC: 045242167548
UNSPSC: 27111543
Manufacturer PN: 48-89-2772
$11.28 EA
Factory Order
Estimated to ship in 14 days
QTY:


Milwaukee Thunderbolt Aircraft Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 12 in Overall Length, 2-3/4 in Cutting Depth, Parabolic Flute, 2-3/4 in Flute Length, 1/4 in Shank, 3-Flat Shank, 135 deg Point, Split Point, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Metal, Plastic and Wood

  • Features

  • Thunderbolt web provides longer life and faster driller times
  • Fast, accurate drilling - 135 deg split point tip starts on contact to prevent walking
  • Reduced slipping - 3-flat Secure-Grip shank holds the bit firmly in the drill chuck
  • Versatile - extended length for hard to reach areas, with reduced shank diameter for use in 3/8 in chucks
  • Corrosion-resistant - black oxide coating provides lubricity and resists corrosion of the bit

Specifications

ApplicationExtra-Reach and Deep Drilling Applications
Applicable MaterialsMetal, Plastic and Wood
Cutting Depth2-3/4 in
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.25 in
Drill Size - Fraction1/4 in
FinishBlack Oxide
Flute Length2-3/4 in
Flute TypeParabolic
MaterialHSS
Overall Length12 in
Point Angle135 deg
Point TypeSplit
Shank Size1/4 in
Shank Type3-Flat
