Midland Industries MIDM 20213

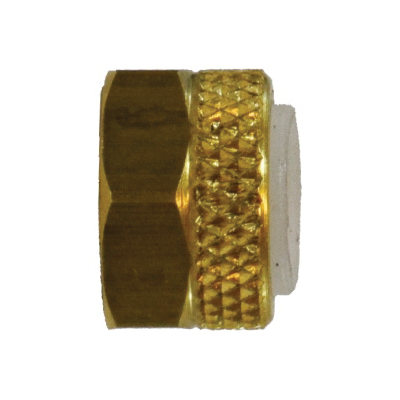

Midland Industries 20213 Tube Nut and Sleeve Assembly, 3/8 in Nominal, Flareless End Style, Plastic Sleeve, Import

UNSPSC: 40183100
Manufacturer PN: 20213
$1.82 EA
Factory Order
Estimated to ship in 14 days
QTY:


Midland Industries Tube Nut and Sleeve Assembly, Nut Fitting/Connector, 3/8 in Nominal, Flareless End Style, 0.56 in Hex, 0.38 in Length, 0 to 150 psi Pressure, -40 to 150 deg F, Plastic Sleeve, Import

  • Features

  • Excellent vibration resistance
  • /- 0.02 tolerance on all dimensions
  • Easy installation, captive sleeve, pre-assembled for installation and can be reassembled
  • Nuts rotate around the sleeve during tightening, preventing twisting of tubing
  • Flaring of tubing not required

Specifications

ApplicationPneumatic Instrumentation Circuits, Lubricant, Cooling Lines, Aluminum and Copper Tubing
Domestic/ImportImport
End StyleFlareless
Fitting/Connector TypeNut
Hex Size0.56 in
Length0.38 in
MaterialPlastic Sleeve
Nominal Size3/8 in
Pressure Rating0 to 150 psi
Temperature Rating-40 to 150 deg F
