Midland Industries MIDM 20058

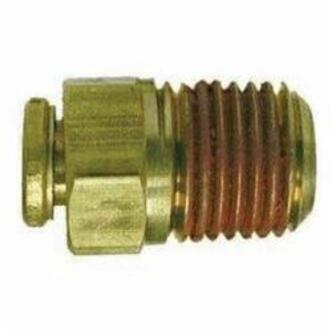

Midland Industries 20058 Connector, 3/8 x 1/4 in Nominal, Push-In x MNPTF End Style, Brass, Import
Invoice description:
3/8 X 1/4 Push-in X Mip Adapter
Factory Order
Midland Industries Connector, Adapter Fitting/Connector, 3/8 x 1/4 in Nominal, Push-In x MNPTF End Style, 0.56 in Hex, -10 to 200 deg F, Brass, 1.11 in L Dimensions, Import
Features
- Quick connect simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reuseable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Versatile, BunaN O-rings standard
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- PRE-APPLIED TEFLON based pipe sealant on all male pipe threads, saving customer additional labor
- /- 0.02 tolerance on all dimension
- Fitting is suitable for use up to the maximum working pressure of the plastic tubing used
Specifications
Dimensions1.11 in L
Domestic/ImportImport
End StylePush-In x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.56 in
MaterialBrass
Nominal Size3/8 x 1/4 in
Temperature Rating-10 to 200 deg F
Additional Information
Country of OriginCN
