GARR GARR 27495

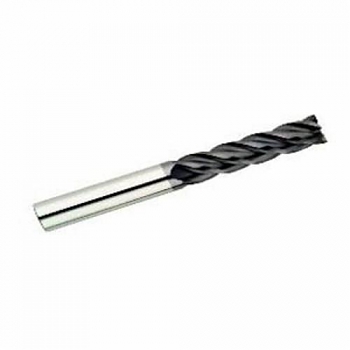

GARR 27495 VRX Center Cutting High Performance Single End Mill, 4 mm Dia Cutter, 0.5 mm Corner Radius, 12 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 50 mm OAL, AlTiN/X.CEED Coated
Invoice description:
Em 4x12locx6x50mm Cr0.5 4fl Altin Hp
In stock
(3)
GARR End Mill, Center Cutting High Performance Single End, Series: VRX, 4 mm Cutter Dia, 0.5 mm Corner Radius, 50 mm Overall Length, 12 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 41 deg Helix Angle, Plain Shank, 38 mm Shank Length, Submicron Grain Solid Carbide, AlTiN/X.CEED Coated
Features
- Reduces vibration for more aggressive machining
- For stainless steel, inconel, pH materials, titanium and tool steels
- The standard in high performance milling
- Corner radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationRoughing and Finishing Applications
Corner Radius0.5 mm
Cutter Diameter4 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut12 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length50 mm
SeriesVRX
Shank Diameter6 mm
Shank Length38 mm
Shank TypePlain
TypeCenter Cutting High Performance Single End
Additional Information
Country of OriginUS
Specification Sheet
