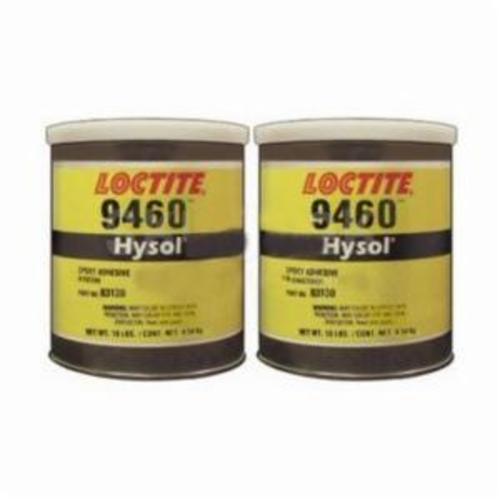

Loctite LOC 83130

Loctite 420341 Hysol EA 9460 2-Part High Performance Non-Sag Structural Adhesive, 20 lb Kit, Black/Blue/Dark/White, 24 hr Curing

Invoice description: Hysol 9460 20lb Kt

UPC: 079340831308

UNSPSC: 31201601

Manufacturer PN: 420341

^$917.16 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Loctite Structural Adhesive, 2-Part High Performance Non-Sag, Series: Hysol EA 9460, Kit Container, 20 lb Container, Epoxy Base, Composition: Part A: Epoxy Resin, Quartz (SiO2), Oxirane, 2,2-[1,4-Cyclohexanedilbis (Methyleneox), Treated Fumed Silica, Titanium Dioxide, Microcrystalline Silica; Part B: Quartz (SiO2), Benzyl Alcohol, Cycloaliphatic Amine, Substituted Piperazine, Silica, Amorphous, Fumed, Crystal-Free, Phenol, Microcrystalline Silica, Epoxy Resin, 50 min Work Life, 3 hr Functional Cure, 24 hr Curing, Black/Blue/Dark/White, 250 deg F, 1:1 Mixing Ratio, <10 g/L VOC, For Use On: Ceramic, Metal and Plastic

Features
Epoxy adhesive is a grey, impact resistant, high viscosity, high peel, high shear strength multi-surface structural adhesive
D 75 shore hardness
Part A: epoxy resin, part B: epoxy hardener

Specifications

ApplicationStructural Bonding

Base TypeEpoxy

ColorBlack/Blue/Dark/White

CompositionPart A: Epoxy Resin, Quartz (SiO2), Oxirane, 2,2-[1,4-Cyclohexanedilbis (Methyleneox), Treated Fumed Silica, Titanium Dioxide, Microcrystalline Silica; Part B: Quartz (SiO2), Benzyl Alcohol, Cycloaliphatic Amine, Substituted Piperazine, Silica, Amorphous, Fumed, Crystal-Free, Phenol, Microcrystalline Silica, Epoxy Resin

Container Size20 lb

Container TypeKit

Curing Time24 hr

For Use OnCeramic, Metal and Plastic

Functional Cure3 hr

Mixing Ratio1:1

SeriesHysol EA 9460

Temperature Range250 deg F

Type2-Part High Performance Non-Sag

VOC Content<10 g/L

Work Life50 min
