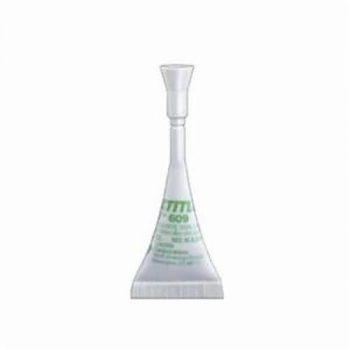

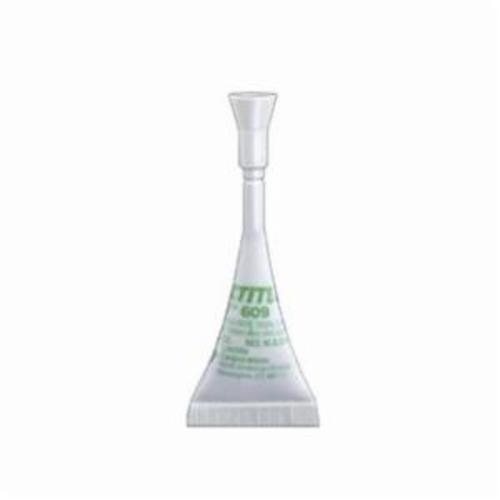

Loctite LOC 60905

Loctite 234667 609 1-Part High Strength Retaining Compound, 0.5 mL Capsule, Liquid, Green, 1.1000000000000001

UPC: 079340609051
UNSPSC: 31201705
Manufacturer PN: 234667
$3.18 EA
Factory Order
Estimated to ship in 14 days
QTY:


Loctite Retaining Compound, 1-Part High Strength, Series: 609, Capsule, 0.5 mL, Composition: Polyglycol Dimethacrylate, 2-Hydroxyethyl Meth Acrylate Ethyl Methacrylate Homopolymer, Cumene Hydroperoxide, Saccharin, Adhesion Promoter, Cumene, Liquid, 10 min Setting Time, 24 hr Curing, Green, Mild, -65 to 300 deg F, 1.1 Specific Gravity, >199.94 deg F Flash, 2.46 g/L VOC, 125 cPs Viscosity Rating, Flammability: 1, 2300 psi Shear Strength

  • Features

  • Loctite 609 retaining compound general purpose is a low viscosity, rapid curing anaerobic adhesive that augments the strength of press fit assemblies or slip fit assemblies up to 0.006 in dia
  • Adds up to 3,000 psi holding power
  • Recommended for parts that will need subsequent dismantling, i.e., retention of bearings onto shafts and into housings
  • Fills up to 0.006 in gap

Specifications

ApplicationFor general purpose applications
ColorGreen
CompositionPolyglycol Dimethacrylate, 2-Hydroxyethyl Meth Acrylate Ethyl Methacrylate Homopolymer, Cumene Hydroperoxide, Saccharin, Adhesion Promoter, Cumene
Container Size0.5 mL
Container TypeCapsule
Curing Time24 hr
Flammability Rating1
Flash Point>199.94 deg F
FormLiquid
Odor/ScentMild
Series609
Setting Time10 min
Shear Strength2300 psi
Specific Gravity1.1
Temperature Rating-65 to 300 deg F
Type1-Part High Strength
Viscosity Rating125 cPs
VOC Content2.46 g/L
