Loctite LOC 29315

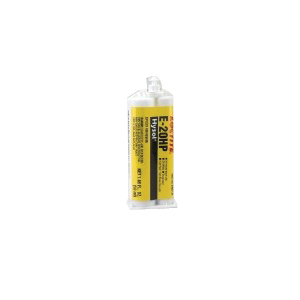

Loctite 237108 Hysol E-20HP 2-Part High Performance Structural Adhesive, 200 mL Dual-Cartridge, Pale Yellow to Off-White/Light Yellow, 24 hr Curing

Invoice description: E-20hp Hysol Epoxy Ad 20 0ml

UPC: 079340293151

UNSPSC: 31201601

Manufacturer PN: 237108

^$100.02 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

Loctite Structural Adhesive, 2-Part High Performance, Series: Hysol E-20HP, Dual-Cartridge Container, 200 mL Container, Epoxy Base, Composition: Part A: Epoxy Resin Substituted Silane; Part B: Polyglycol Diamine Acid Salt, Glycerol, Substituted Aminophenol, Diethyleneglycol Monoethyl Ether, Alcohol Derivative, Ethylene Glycol, 20 min Work Life, 2 hr Functional Cure, 24 hr Curing, Pale Yellow to Off-White/Light Yellow, 250 deg F, 2:1 Mixing Ratio, <10 g/L VOC, For Use On: Ceramic, Metal and Plastic

Features
Epoxy adhesive is a fast setting, high strength multi-surface structural adhesive
Off white, toughened, high peel, high shear
Adhesive for fiber optic components
Short work life, toughened
D 80 shore hardness
Part a: epoxy resin, part b: epoxy hardener

Specifications

Base TypeEpoxy

ColorPale Yellow to Off-White/Light Yellow

CompositionPart A: Epoxy Resin Substituted Silane; Part B: Polyglycol Diamine Acid Salt, Glycerol, Substituted Aminophenol, Diethyleneglycol Monoethyl Ether, Alcohol Derivative, Ethylene Glycol

Container Size200 mL

Container TypeDual-Cartridge

Curing Time24 hr

For Use OnCeramic, Metal and Plastic

Functional Cure2 hr

Mixing Ratio2:1

SeriesHysol E-20HP

Temperature Range250 deg F

Type2-Part High Performance

VOC Content<10 g/L

Work Life20 min
