GARR GARR 24487

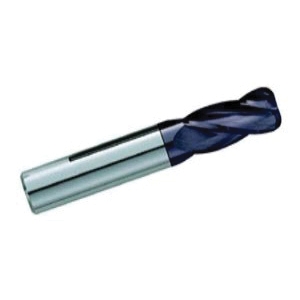

GARR 24487 830RA Center Cutting Single End Standard Length End Mill, 16 mm Dia Cutter, 2.5 mm Corner Radius, 38 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 88 mm OAL, TiAlN Coated
Invoice description:
Em 16x38locx16x88mm Cr2.5 4fl Tialn
Factory Order
GARR End Mill, Center Cutting Single End Standard Length, Series: 830RA, 16 mm Cutter Dia, 2.5 mm Corner Radius, 88 mm Overall Length, 38 mm Length of Cut, 4 Flutes, Spiral Flute, 16 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain/Round Shank, Submicron Grain Solid Carbide, TiAlN Coated
Features
- Up to 40% faster than uncoated
- For stronger corners and part radius
- Extremely versatile
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Corner Radius2.5 mm
Cutter Diameter16 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut38 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length88 mm
Series830RA
Shank Diameter16 mm
Shank TypePlain/Round
TypeCenter Cutting Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
