GARR GARR 24367

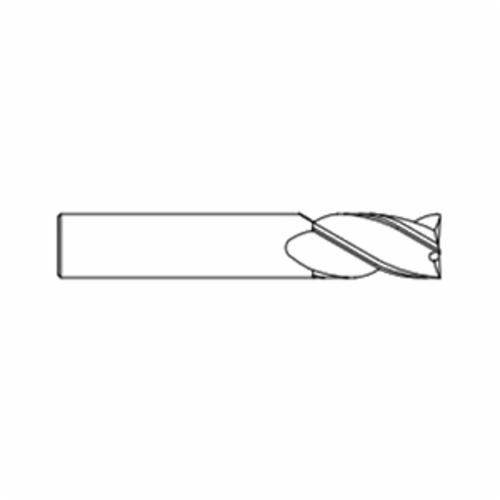

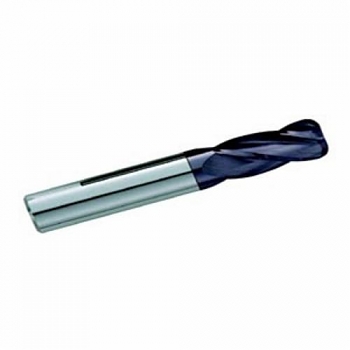

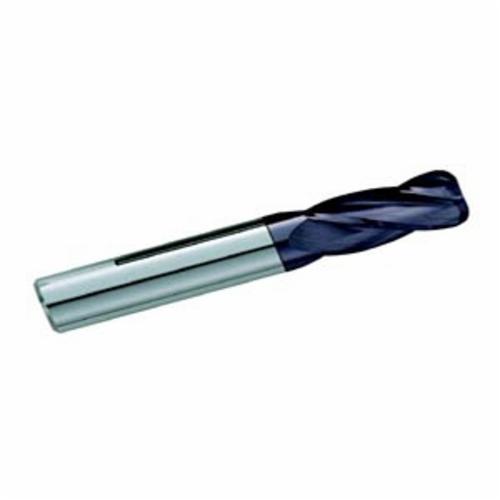

GARR 24367 830RA Center Cutting Single End Standard Length End Mill, 10 mm Dia Cutter, 3.2 mm Corner Radius, 25 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 70 mm OAL, TiAlN Coated
Invoice description:
Em 10x25locx10x70mm Cr3.2 4fl Tialn
Factory Order
GARR End Mill, Center Cutting Single End Standard Length, Series: 830RA, 10 mm Cutter Dia, 3.2 mm Corner Radius, 70 mm Overall Length, 25 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain/Round Shank, 45 mm Shank Length, Submicron Grain Solid Carbide, TiAlN Coated
Features
- Up to 40% faster than uncoated
- For stronger corners and part radius
- Extremely versatile
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Corner Radius3.2 mm
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut25 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length70 mm
Series830RA
Shank Diameter10 mm
Shank Length45 mm
Shank TypePlain/Round
TypeCenter Cutting Single End Standard Length
Additional Information
Country of OriginUS
