GARR GARR 24148

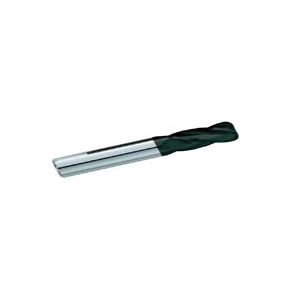

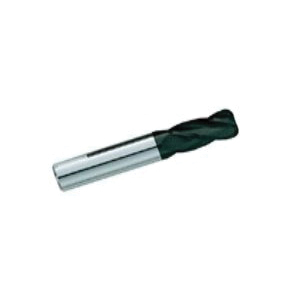

GARR 24148 210RD Center Cutting Single End Standard Length End Mill, 4 mm Dia Cutter, 0.3 mm Corner Radius, 14 mm Length of Cut, 4 Flutes, 4 mm Dia Shank, 50 mm OAL, Crystalline Diamond Coated
Invoice description:
Em 4x14locx4x50mm Cr0.3 4fl Cvd
Factory Order
GARR End Mill, Center Cutting Single End Standard Length, Series: 210RD, 4 mm Cutter Dia, 0.3 mm Corner Radius, 50 mm Overall Length, 14 mm Length of Cut, 4 Flutes, Spiral Flute, 4 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Round Shank, Grade C-2 Solid Carbide, Crystalline Diamond Coated
Features
- Up to 17 times tool life versus uncoated end mills
- For stronger corners and part radius
- For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationFor graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
Corner Radius0.3 mm
Cutter Diameter4 mm
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut14 mm
MaterialGrade C-2 Solid Carbide
Number of Flutes4
Overall Length50 mm
Series210RD
Shank Diameter4 mm
Shank TypeRound
TypeCenter Cutting Single End Standard Length
Additional Information
Country of OriginUS
