GARR GARR 24097

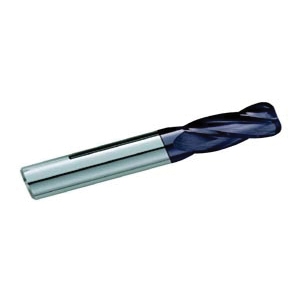

GARR 24097 830RA Center Cutting Single End Standard Length End Mill, 4 mm Dia Cutter, 0.3 mm Corner Radius, 14 mm Length of Cut, 4 Flutes, 4 mm Dia Shank, 50 mm OAL, TiAlN Coated
Invoice description:
Em 4x14locx4x50mm Cr0.3 4fl Tialn
Factory Order
GARR End Mill, Center Cutting Single End Standard Length, Series: 830RA, 4 mm Cutter Dia, 0.3 mm Corner Radius, 50 mm Overall Length, 14 mm Length of Cut, 4 Flutes, Spiral Flute, 4 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain/Round Shank, Submicron Grain Solid Carbide, TiAlN Coated
Features
- Up to 40% faster than uncoated
- For stronger corners and part radius
- Extremely versatile
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Corner Radius0.3 mm
Cutter Diameter4 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut14 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length50 mm
Series830RA
Shank Diameter4 mm
Shank TypePlain/Round
TypeCenter Cutting Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
