GARR GARR 22420

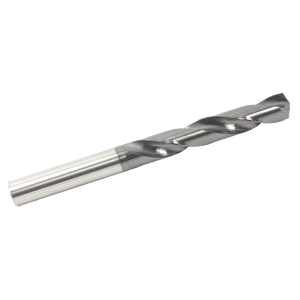

GARR 22420 1580KH High Performance Short Length Drill Bit, V Drill - Letter, 0.377 in Drill - Decimal Inch, Submicron Grain Solid Carbide, TiAlN Coated
Factory Order
GARR Short Length Drill Bit, High Performance, Series: 1580KH, Imperial, V Drill - Letter, 0.377 in Drill - Decimal Inch, 3-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.377 in Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel
Features
- High performance - high penetration solid submicron grain carbide drill
- Coolant through capabilities for high pressure coolant systems
- Extended tool life and greater surface finish through faster SFM rates
- Up to 70% faster than standard carbide drills
- 30 deg helix for better chip evacuation
- Honed cutting edge
- Live tooling recommended on lathe processes
Specifications
Applicable MaterialsCobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel
Cutting Depth3XD
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.377 in
Drill Size - LetterV
FinishTiAlN Coated
Flute Length1-11/16 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length3-1/2 in
Point Angle140 deg
Series1580KH
Shank Size0.377 in
TypeHigh Performance
