GARR GARR 21562

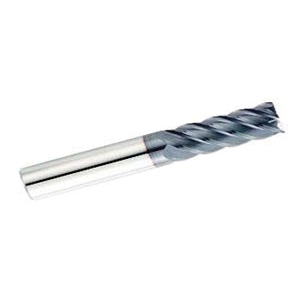

GARR 21562 545RA Center Cutting High Performance Single End Mill, 10 mm Dia Cutter, 0.5 mm Corner Radius, 22 mm Length of Cut, 5 Flutes, 10 mm Dia Shank, 70 mm OAL, AlTiN/X.CEED Coated
Invoice description:
Em 10x22locx10x70mm Cr0.5 5fl Altin Hp
Factory Order
GARR End Mill, Center Cutting High Performance Single End, Series: 545RA, 10 mm Diameter Cutter, 0.5 mm Corner Radius, 70 mm Overall Length, 22 mm Length of Cut, 5 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, AlTiN/X.CEED Coated
Features
- High performance tool for use in high Rockwell materials
- For hardened die mold, inconel and tool steels above 45 Rc
Specifications
ApplicationFor hardened die mold, inconel and tool steels above 45 Rc
Corner Radius0.5 mm
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut22 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes5
Overall Length70 mm
Series545RA
Shank Diameter10 mm
Shank TypeRound
TypeCenter Cutting High Performance Single End
Additional Information
Country of OriginUS
