GARR GARR 20951

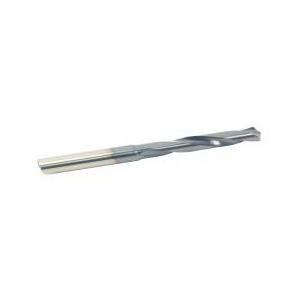

GARR 20951 1580HD High Performance Short Length Drill Bit, 12.4 mm Drill - Metric, 0.4881 in Drill - Decimal Inch, Submicron Grain Solid Carbide, TiAlN Coated
Invoice description:
1580hd High Performance Drill, 12.4mm Dia X107mm L, Submicron Grain Solid Carbide, Tialn
Factory Order
GARR Short Length Drill Bit, High Performance, Series: 1580HD, Metric/Imperial, 12.4 mm Drill - Metric, 0.4881 in Drill - Decimal Inch, 107 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 60 mm Flute Length, 14 mm Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel
Features
- High performance solid submicron grain carbide drill with reinforced shank
- Up to 50% faster than standard carbide drills
- 30 deg helix for better chip evacuation
- Honed cutting edge
- Can be used as a pilot drill
Specifications
Applicable MaterialsCobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel
Cutting Depth3XD
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.4881 in
Drill Size - Metric12.4 mm
FinishTiAlN Coated
Flute Length60 mm
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length107 mm
Point Angle140 deg
Series1580HD
Shank Size14 mm
TypeHigh Performance
Additional Information
Standards/ApprovalDIN 6537/6535 HA
Country of OriginUS
