GARR GARR 19550

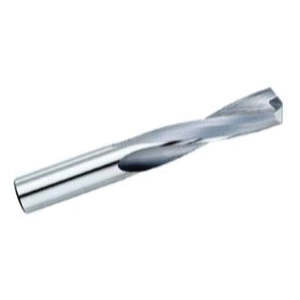

GARR 19550 1510 Screw Machine Drill, O Drill - Letter, 0.316 in Drill - Decimal Inch, Submicron Grain Solid Carbide, Hardlube Coated
Invoice description:
Drill Stub O (0.316) Hrdlbcrb Slw 3xd
Factory Order
GARR Screw Machine Drill, Series: 1510, Imperial, O Drill - Letter, 0.316 in Drill - Decimal Inch, 2-15/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1-11/16 in Flute Length, 0.316 in Shank, 135 deg Point, Thinned Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Hardlube Coated, Applicable Materials: Hastalloy, Inconel, Stainless Steel, Titanium and Waspalloy
Features
- Heavy web for extra rigidity and added strength
- Live tooling recommended on lathe processes
- 15 deg helix angle
- Primary/secondary point
Specifications
Applicable MaterialsHastalloy, Inconel, Stainless Steel, Titanium and Waspalloy
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.316 in
Drill Size - LetterO
FinishHardlube Coated
Flute Length1-11/16 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length2-15/16 in
Point Angle135 deg
Point TypeThinned
Series1510
Shank Size0.316 in
Additional Information
Country of OriginUS
