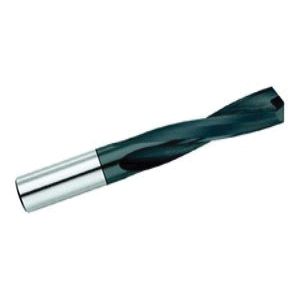

GARR 19071 1510H Screw Machine Drill, 1/16 in Drill - Fraction, 0.0625 in Drill - Decimal Inch, Submicron Grain Solid Carbide, Hardlube Coated
Invoice description:
Drill Stub 1/16(0.0625) Hrdlb Crb Slw 3xd
Factory Order
GARR Screw Machine Drill, Series: 1510H, Imperial, 1/16 in Drill - Fraction, 0.0625 in Drill - Decimal Inch, 1-3/4 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 5/8 in Flute Length, 1/16 in Shank, 135 deg Point, Thinned Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Hardlube Coated, Applicable Materials: Hastalloy, Inconel, Stainless Steel, Titanium and Waspalloy
Features
- Heavy web for extra rigidity and added strength
- Coating provides excellent heat resistance and lubricity
- Up to 40% faster than uncoated
- Live tooling recommended on lathe processes
- 15 deg helix angle
- Primary/secondary point
Specifications
Applicable MaterialsHastalloy, Inconel, Stainless Steel, Titanium and Waspalloy
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0625 in
Drill Size - Fraction1/16 in
FinishHardlube Coated
Flute Length5/8 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length1-3/4 in
Point Angle135 deg
Point TypeThinned
Series1510H
Shank Size1/16 in
Additional Information
Country of OriginUS
