Iscar ISCAR 3602094

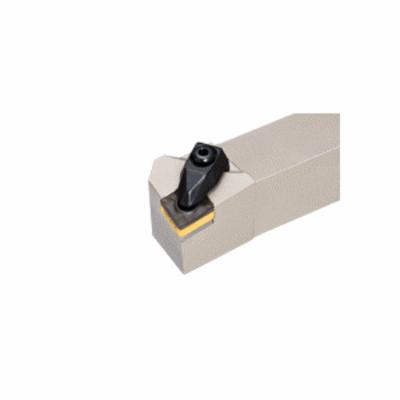

Iscar 3602094 ISOTURN External Indexable Turning Tool Holder, ANSI Code: DCLNR 16-4, DCLN Tool Holder, CNMG 43 and CNMX 45 Insert, Right Hand Cutting, 1 in H x 1 in W Square Shank, 95 deg Lead Angle, -6 deg Axial/Radial Rake, 6 in OAL

UNSPSC: 23242106
Manufacturer PN: 3602094
$194.30 EA
Factory Order
Estimated to ship in 14 days
QTY:

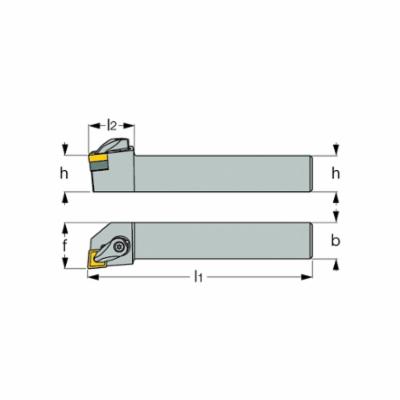

Iscar Indexable Turning Tool Holder, External, Series: ISOTURN, DCLN Tool Holder, 6 in Overall Length, Square Shank, 1 in H x 1 in W Shank, Insert Compatibility: CNMG 43 and CNMX 45, Right Hand Cutting, 1-1/4 in Back of Bar to Cutting Edge, 95 deg Lead Angle, 1.4 in Head Length, ANSI Code: DCLNR 16-4, -6 deg Axial/Radial Rake

  • Features

  • DCLNR/L - R-Clamp tools carrying the 80 deg negative rhombic inserts

Specifications

ApplicationTurning Applications
ANSI CodeDCLNR 16-4
Back of Bar to Cutting Edge1-1/4 in
Cutting DirectionRight Hand
Head Length1.4 in
Insert CompatibilityCNMG 43 and CNMX 45
Lead Angle95 deg
Overall Length6 in
Rake-6 deg Axial/Radial
SeriesISOTURN
Shank Size1 in H x 1 in W
Shank TypeSquare
Tool Holder StyleDCLN
TypeExternal
