Iscar ISCAR 2301860

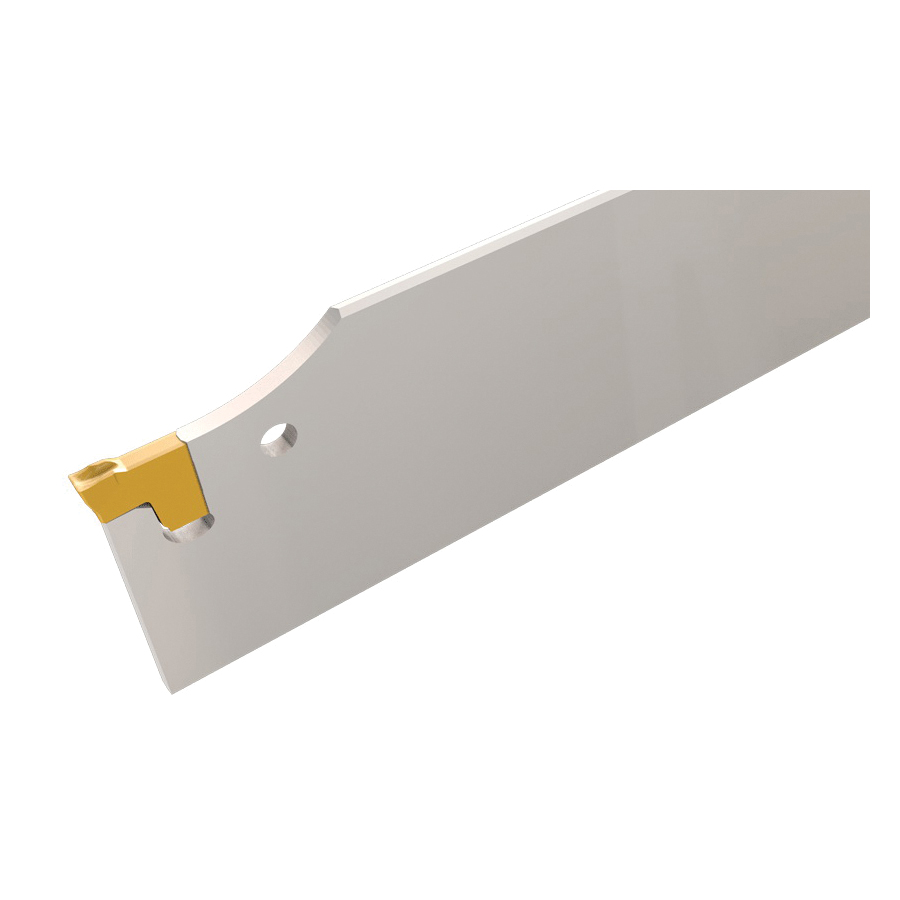

Iscar 2301860 TANG-GRIP Indexable Cut-Off Blade With Tangentially Oriented Pocket, Single End End, 0.0984 in W TGFH Blade, 1.8 to 2.4 mm W Insert, Insert Compatibility: TAG L2J-15D, TAG L2J-6D, TAG L2JS-6D, TAG N2A, TAG N2LF, TAG N2MF
Invoice description:
Tgfh 26-2
Factory Order

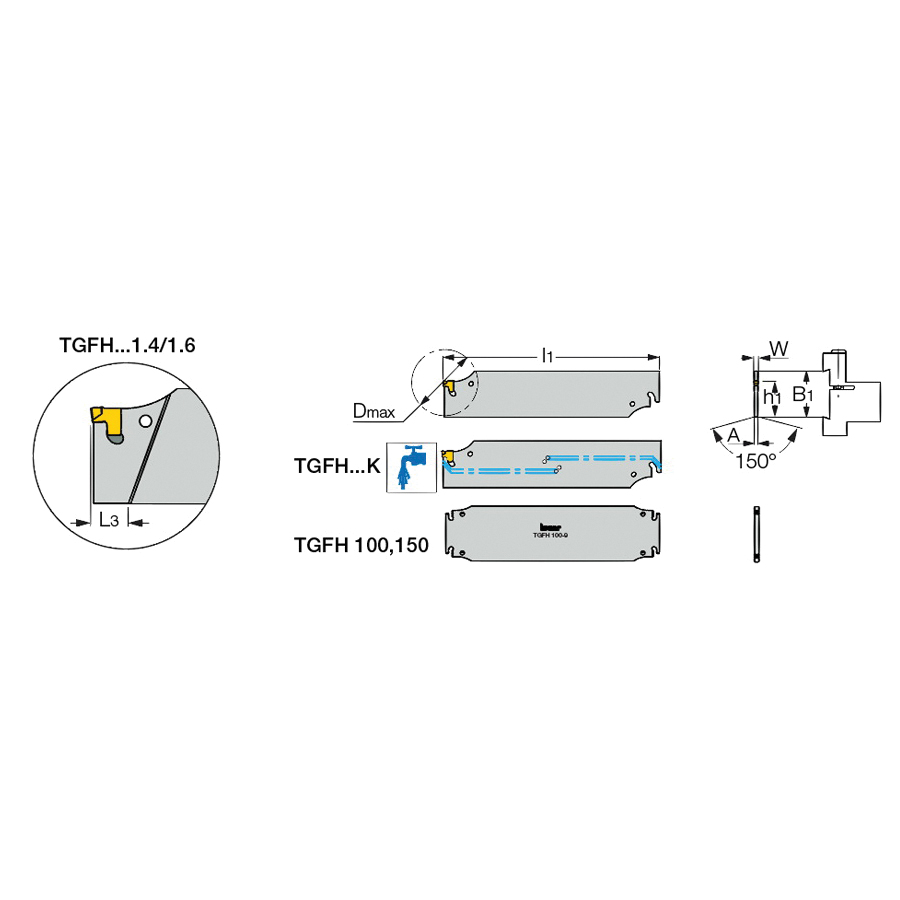

Iscar Indexable Cut-Off Blade, Series: TANG-GRIP, TGFH Blade Style, 26 mm Blade Height, 1.65 mm Blade Thickness, 0.0984 in Blade Width, Single End, 21.4 mm Center Height, 110 mm Overall Length, Neutral Cutting Direction, 1.8 to 2.4 mm Insert Width, Insert Compatibility: TAG L2J-15D, TAG L2J-6D, TAG L2JS-6D, TAG N2A, TAG N2LF, TAG N2MF, 1.65 Insert Seat
Features
- Very rigid clamping
- Enables machining at very high feed rates and provides excellent straightness and surface finish
- Recommended for parting large diameter parts and for interrupted cuts
- Excellent tool and pocket life
Specifications
ApplicationGroove Turning and Parting
Blade Height26 mm
Blade StyleTGFH
Blade Thickness1.65 mm
Blade Width0.0984 in
Center Height21.4 mm
Cutting DirectionNeutral
Insert CompatibilityTAG L2J-15D, TAG L2J-6D, TAG L2JS-6D, TAG N2A, TAG N2LF, TAG N2MF
Insert Seat Size1.65
Insert Width1.8 to 2.4 mm
Overall Length110 mm
SeriesTANG-GRIP
Single or Double EndSingle
Additional Information
Country of OriginIL
