Irwin IRW 61620

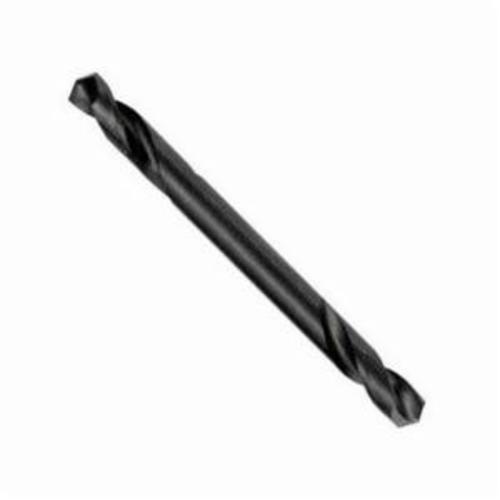

Irwin 61620 Wire Gauge Double End Drill Bit, #20 Drill - Wire, 0.161 in Drill - Decimal Inch, 5/8 in L Flute
Invoice description:
No. 20 Double Ended Body , W, Bulk
UPC: 024721616203
UNSPSC:
23241606
Manufacturer PN: 61620
$2.26 EA
Factory OrderEstimated to ship in 14 days
Irwin Double End Drill Bit, Wire Gauge, Series: 616, #20 Drill - Wire, 0.161 in Drill - Decimal Inch, 2-1/8 in Overall Length, Spiral Flute, 5/8 in Flute Length, 135 deg Point, Split/Self-Centering Point, M2 HSS Cutting Edge, M2 HSS, Black Oxide, Applicable Materials: Wood, Metal and Plastic
Features
- Bit is recommended for use where more precisely sized holes are required
- Engineered with premium high speed steel with black oxide coating for corrosion resistance
- Drills exact hole size
- 135 deg split point ensures a true start and eliminates bit walking
- Drills twice as many holes as a single-end drill bit
- Ideal for tapping
Specifications
ApplicationFor general metal drilling in tight spaces, drilling sheet metal for rivets and fasteners
Applicable MaterialsWood, Metal and Plastic
Cutting Edge MaterialM2 HSS
Drill Size - Decimal Inch0.161 in
Drill Size - Wire#20
FinishBlack Oxide
Flute Length5/8 in
Flute TypeSpiral
MaterialM2 HSS
Overall Length2-1/8 in
Point Angle135 deg
Point TypeSplit/Self-Centering
Series616
TypeWire Gauge
Additional Information
WarrantyLimited
