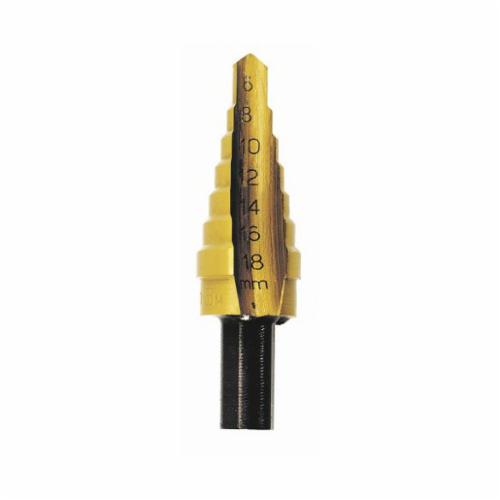

Irwin Unibit IRW 16103
Irwin Unibit 16103 Step Drill Bit, 6 mm Dia Min Hole, 18 mm Dia Max Hole, 7 Steps, HSS, 7 Hole Sizes, 3/8 in Shank
Invoice description:
3mt 7 Hole Sizes (6 Mm - 18 Mm), 2 Mm Increm
UPC: 038548161037
UNSPSC:
23241606
Manufacturer PN: 16103
$71.78 EA
Factory OrderEstimated to ship in 14 days
Irwin Unibit Step Drill Bit, Metric, 6 mm Diameter Minimum Hole, 18 mm Diameter Maximum Hole, 2-9/16 in Overall Length, 7 Steps, 2 mm Step Depth, 7 Hole, 1 Flutes, 10 mm/12 mm/14 mm/16 mm/18 mm/6 mm/8 mm, 3/8 in Shank, 3-Flat Shank, Self-Starting SpeedPoint Point, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Features
- Single flute cutting edge for greater control through steps
- 3 flatted shank prevents slipping in drill chuck
- New speed point tip penetrates faster than previous Unibit and prevents walking
- Geometry of single flute cutting edge drills true, round holes and provides maximum step control
- Laser etched sizes inside flute for easy and permanent hole size identification
- Titanium nitride coating resists heat and friction, extending the cutting edge life up to six times longer than other high speed steel step drill bits
Specifications
ApplicationFor drilling holes into thin materials
Applicable MaterialsAluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric
FinishTiN Coated
Hole Sizes Cut10 mm/12 mm/14 mm/16 mm/18 mm/6 mm/8 mm
MaterialHSS
Maximum Hole Diameter18 mm
Minimum Hole Diameter6 mm
Number of Flutes1
Number of Hole Sizes7
Number of Steps7
Overall Length2-9/16 in
Point TypeSelf-Starting SpeedPoint
Shank Size3/8 in
Shank Type3-Flat
Step Depth2 mm
Additional Information
Country of OriginUS
