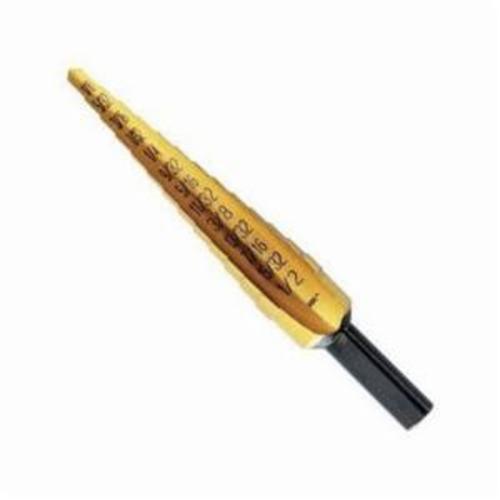

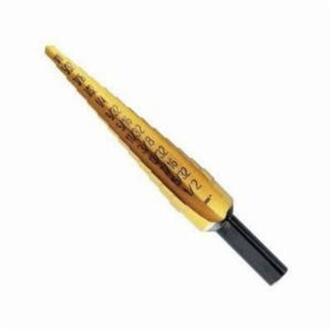

Irwin Unibit IRW 15103
Irwin Unibit 15103 Step Drill Bit, 1/4 in Dia Min Hole, 3/4 in Dia Max Hole, 9 Steps, HSS, 9 Hole Sizes, 3/8 in Shank
UPC: 038548151038
UNSPSC:
23241606
Manufacturer PN: 15103
$83.04 EA
Factory OrderEstimated to ship in 14 days
Irwin Unibit Step Drill Bit, Imperial, 1/4 in Diameter Minimum Hole, 3/4 in Diameter Maximum Hole, 2-3/4 in Overall Length, 9 Steps, 1/16 in Step Depth, 9 Hole, 1 Flutes, 3/8 in Shank, 3-Flat Shank, Self-Starting SpeedPoint Point, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Features
- Single flute cutting edge for greater control through steps
- 3 flatted shank prevents slipping in drill chuck
- New speed point tip penetrates faster than previous Unibit and prevents walking
- SpeedPoint tip for fast starts
Specifications
ApplicationFor drilling holes into thin materials
Applicable MaterialsAluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
FinishTiN Coated
MaterialHSS
Maximum Hole Diameter3/4 in
Minimum Hole Diameter1/4 in
Number of Flutes1
Number of Hole Sizes9
Number of Steps9
Overall Length2-3/4 in
Point TypeSelf-Starting SpeedPoint
Shank Size3/8 in
Shank Type3-Flat
Step Depth1/16 in
