Irwin Unibit IRW 15102

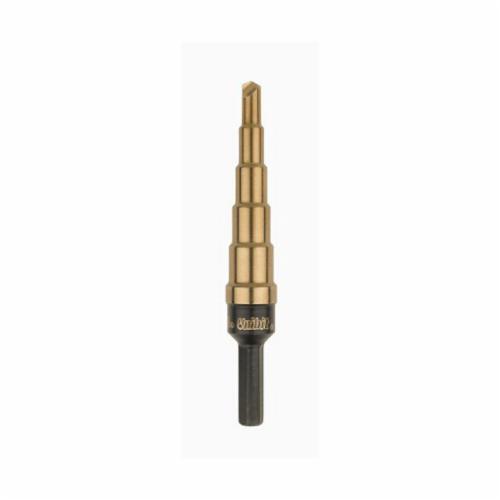

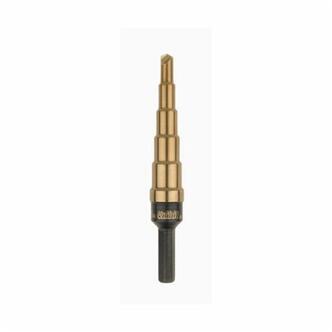

Irwin Unibit 15102ZR Step Drill Bit, 3/16 in Dia Min Hole, 1/2 in Dia Max Hole, 6 Steps, HSS, 6 Hole Sizes, 1/4 in Shank
Invoice description:
2t 6 Hole Sizes (3/16"-1 2"), 1/16" Increm
UPC: 038548151021
UNSPSC:
23241606
Manufacturer PN: 15102ZR
$46.06 EA
Factory OrderEstimated to ship in 14 days
Irwin Unibit Step Drill Bit, Imperial, 3/16 in Diameter Minimum Hole, 1/2 in Diameter Maximum Hole, 3-1/4 in Overall Length, 6 Steps, 1/16 in Step Depth, 6 Hole, 1 Flutes, 1/4 in Shank, Hex Shank, Self-Starting SpeedPoint Point, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Features
- Titanium nitride coating resists heat and friction, extending the cutting edge life up to six times longer than other high speed steel step drill bits
- Geometry of single flute cutting edge drills true, round holes and provides maximum step control
- Laser etched sizes inside flute for easy and permanent hole size identification
- SpeedPoint tip for fast starts
Specifications
ApplicationRepetitive Drilling
Applicable MaterialsAluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
FinishTiN Coated
MaterialHSS
Maximum Hole Diameter1/2 in
Minimum Hole Diameter3/16 in
Number of Flutes1
Number of Hole Sizes6
Number of Steps6
Overall Length3-1/4 in
Point TypeSelf-Starting SpeedPoint
Shank Size1/4 in
Shank TypeHex
Step Depth1/16 in
Additional Information
WarrantyLimited
Country of OriginUS
