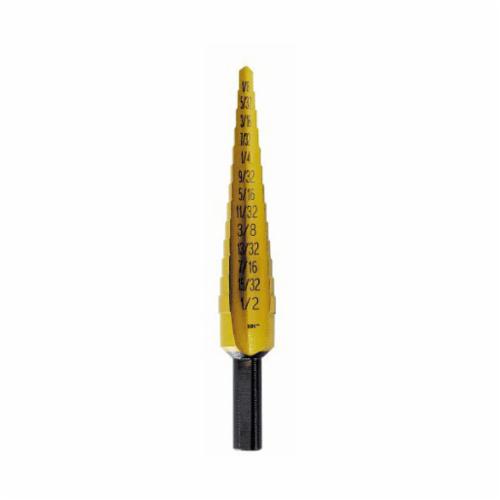

Irwin Unibit IRW 15101
Irwin Unibit 15101ZR Step Drill Bit, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, 13 Steps, HSS, 13 Hole Sizes, 1/4 in Shank
Invoice description:
1t 13 Hole Sizes (1/8"-1 2"), 1/32" Increm
UPC: 038548151014
UNSPSC:
23241606
Manufacturer PN: 15101ZR
$46.06 EA
Factory OrderEstimated to ship in 52 days
Irwin Unibit Step Drill Bit, Imperial, 1/8 in Diameter Minimum Hole, 1/2 in Diameter Maximum Hole, 3-1/4 in Overall Length, 13 Steps, 1/32 in Step Depth, 13 Hole, 1 Flutes, 1/4 in Shank, Hex Shank, Self-Starting SpeedPoint Point, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Features
- Titanium nitride coating resists heat and friction, extending the cutting edge life up to six times longer than other high speed steel step drill bits
- Geometry of single flute cutting edge drills true, round holes and provides maximum step control
- Laser etched sizes inside flute for easy and permanent hole size identification
- SpeedPoint tip for fast starts
Specifications
ApplicationRepetitive Drilling
Applicable MaterialsAluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
FinishTiN Coated
MaterialHSS
Maximum Hole Diameter1/2 in
Minimum Hole Diameter1/8 in
Number of Flutes1
Number of Hole Sizes13
Number of Steps13
Overall Length3-1/4 in
Point TypeSelf-Starting SpeedPoint
Shank Size1/4 in
Shank TypeHex
Step Depth1/32 in
Additional Information
WarrantyLimited
Country of OriginUS
