Harvey Tool HARV 934862

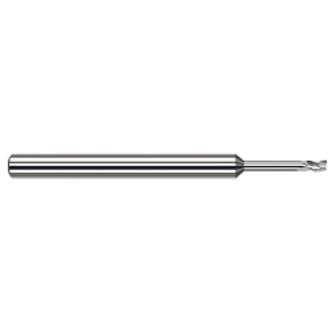

Harvey Tool 934862 Center Cut Stub Length Miniature End Mill, 0.062 in Dia Cutter, 3/32 in Length of Cut, (3) Flutes, 1/8 in Dia Shank, 2-1/2 in OAL, Uncoated
Invoice description:
Em 1/16x3/32x7/16lbs 3fl Em 1/16x3/32x7/16lbs 3fl
Manufacturer PN: 934862
$59.50 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 934862, Miniature End Mill, Center Cut Stub Length, 0.062 in Diameter Cutter, 2-1/2 in Overall Length, 3/32 in Length of Cut, 3 Flutes, Helical Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, Solid Carbide, Uncoated
Features
- Long length design for deep cavities, up to 10 in overall length
- Stub flute for maximum rigidity
- Reduced neck diameter to avoid heeling
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Overall Reach 0.4370 in (7/16)
- Reach Multiple (7x)
- Profile Square
Specifications
Cutter Diameter0.062 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelical
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Carbide
Number of Flutes3
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut Stub Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
