Harvey Tool HARV 23807

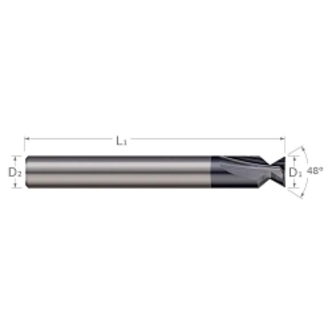

Harvey Tool 23807 Parker Hannifin O-Ring Dovetail Cutters With Drop Hole Allowance, 0.07 in Dia Cutter, 1/8 in Dia Shank Cylindrical Shank, 48 deg Included Angle, 1-1/2 in OAL
Invoice description:
Dovt .079x1/64rx48dinc 2 Flute Dovt .079x1/64rx48dinc 2 Flute
Manufacturer PN: 23807
$124.54 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 23807, Parker Hannifin O-Ring Dovetail Cutters With Drop Hole Allowance, 0.07 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Shank Diameter, Cylindrical Shank, 2 Teeth, 48 deg Included Angle, Solid Carbide, Uncoated
Features
- Designed for Milling Full Dovetail Grooves with Drop Hole Allowance
- Undersized Cutter Design Allows Climb Milling Both Faces of Groove for Improved Finish
- Mills Both Top and Bottom Radii
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Flutes 2
- O-Ring X-Section 0.0700 in
- Neck Diameter 0.0540 in
- Neck Radius 0.0050 in
- Radius Center 0.0470 in (3/64)
- Profile Corner Radius
Specifications
ApplicationMilling Full Dovetail Grooves with Drop Hole Allowance
Cutter Diameter0.07 in
FinishUncoated
Included Angle48 deg
MaterialSolid Carbide
Number of Teeth2
Overall Length1-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeCenter Cut
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
