GARR GARR 64220

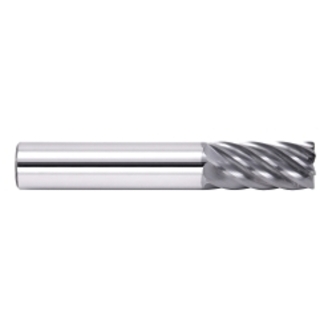

GARR 64220 VX-7 High Performance Non-Center Cutting Corner Radius End Mill, 1/2 in Dia Cutter, 0.015 in Corner Radius, 5/8 in Length of Cut, 7 Flutes, 1/2 in Dia Shank, 2-1/2 in OAL, AlCrN Coated

Invoice description: Em 1/2x2-1/2x5/8 .015c/r 7fl Alcrn

UNSPSC: 27112803
Manufacturer PN: 64220
$172.70 EACH
Factory Order
Estimated to ship in 7 days
QTY:


GARR Corner Radius End Mill, High Performance Non-Center Cutting, Series: VX-7, 1/2 in Diameter Cutter, 0.015 in Corner Radius, 2-1/2 in Overall Length, 5/8 in Length of Cut, 7 Flutes, Staggered Flute, 1/2 in Shank Diameter, 38 deg Helix Angle, Solid Submicron Grain Carbide, AlCrN Coated

  • Features

  • Engineered for dynamic milling
  • Multiple flutes for increased feed rates
  • Staggered flute geometry
  • Up to 15% radial (ae) engagement
  • Effective for trochoidal milling
  • Corner radius tolerance 0.001 to -0.001 in (0.025 to -0.025 mm)

Specifications

ApplicationFor titanium, stainless and tool steels under 45Rc
Corner Radius0.015 in
Cutter Diameter1/2 in
FinishAlCrN Coated
Flute TypeStaggered
Helix Angle38 deg
Length of Cut5/8 in
MaterialSolid Submicron Grain Carbide
Number of Flutes7
Overall Length2-1/2 in
SeriesVX-7
Shank Diameter1/2 in
TypeHigh Performance Non-Center Cutting

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer
Country of OriginUS
