Fullerton FULLT 23104

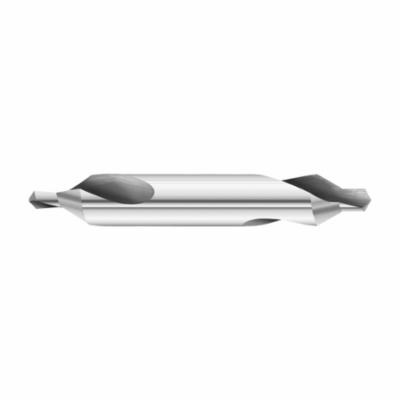

Fullerton 23104 2305 Double End Center Drill, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, Solid Carbide, Bright
Invoice description:
Center Drill #4 Carbide
Factory Order
Fullerton Center Drill, Double End, Series: 2305, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 1/8 in Point Diameter, 5/16 in Diameter Body, 2-1/8 in Overall Length, 2 Flutes, Spiral Flute, 5/16 in Shank, Round Shank, 118 deg Point, Cam Relieved Point, 60 deg Included Angle, Right Hand Cutting Direction, Dura-Carb Cutting Edge, Solid Carbide, Bright, Applicable Materials: Brass, Copper, Cast Iron, Composites, Graphite, Hardened Steel, High Si Al, Low Si Al, Steel, Stainless Steel and Titanium
Features
- +0.003 in, -0.000 in/+0.08 mm, -0.00 mm pilot diameter tolerance
- H6 shank diameter tolerance
- 25 deg helix angle
- Right hand spira
Specifications
ApplicationFor centering and chamfering
Applicable MaterialsBrass, Copper, Cast Iron, Composites, Graphite, Hardened Steel, High Si Al, Low Si Al, Steel, Stainless Steel and Titanium
Body Diameter5/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialDura-Carb
Drill Size - Decimal Inch0.125 in
Drill Size - Fraction1/8 in
FinishBright
Flute TypeSpiral
Included Angle60 deg
MaterialSolid Carbide
Number of Flutes2
Overall Length2-1/8 in
Point Angle118 deg
Point Diameter1/8 in
Point TypeCam Relieved
Series2305
Shank Size5/16 in
Shank TypeRound
TypeDouble End
Additional Information
Standards/ApprovalISO Certified
Country of OriginUS
