Dixon DIXV 4-DMC-4

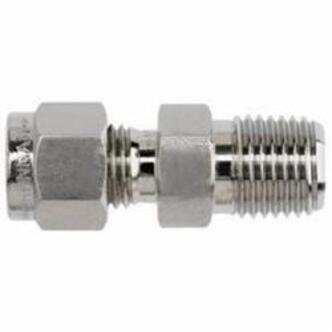

Dixon The Right Connection 4-DMC-4 Instrumentation Connector, 1/4 in x 1/4-18 Nominal, Tube x MNPT End Style, 316 Stainless Steel, Domestic
Invoice description:
Instrumentation Connectr 1/4 X 1/4 Ss 316
UPC: 697464122319
UNSPSC:
40183100
Manufacturer PN: 4-DMC-4
$17.56 EACH
Factory OrderEstimated to ship in 7 days
Dixon The Right Connection Instrumentation Connector, Adapter Fitting/Connector, 1/4 in x 1/4-18 Nominal, Tube x MNPT End Style, -325 to 1200 deg F, 316 Stainless Steel, Domestic
Features
- Leak free, reliable fittings for use in process, control and instrumentation applications
- Fully interchangeable with Swagelok and parker A-Lok fittings
- Double collet swaging action
- Two positive seal points
- Pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
Specifications
ApplicationHigh Pressure, High Temperature, Nitrogen, Helium, Flammable Gases, Hydraulic Gases and Pneumatic Automation
Domestic/ImportDomestic
End StyleTube x MNPT
Fitting/Connector TypeAdapter
Material316 Stainless Steel
Nominal Size1/4 in x 1/4-18
Temperature Rating-325 to 1200 deg F
Additional Information
Standards/ApprovalASTM F 1387
Country of OriginUS
