Bessey BESS SG30VAD

Bessey KombiKlamp SG30VAD Bar Clamp, 4-3/4 in D Throat, 12 in Clamping, Replaceable Swivel

Invoice description: Clamp, Welding, Multi-pu Rp 26 Se, Kombiklam

UPC: 788502005456
UNSPSC: 31162903
Manufacturer PN: SG30VAD
$111.40 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey KombiKlamp Bar Clamp, 4-3/4 in Throat Depth, 12 in Clamping, Replaceable Swivel, 0.78 in Spindle Diameter, Steel Bar, 2600 lb Clamping, 1-3/16 x 19/32 in Nominal Rail, T-Handle Handle, 4-3/4 in L Handle

  • Features

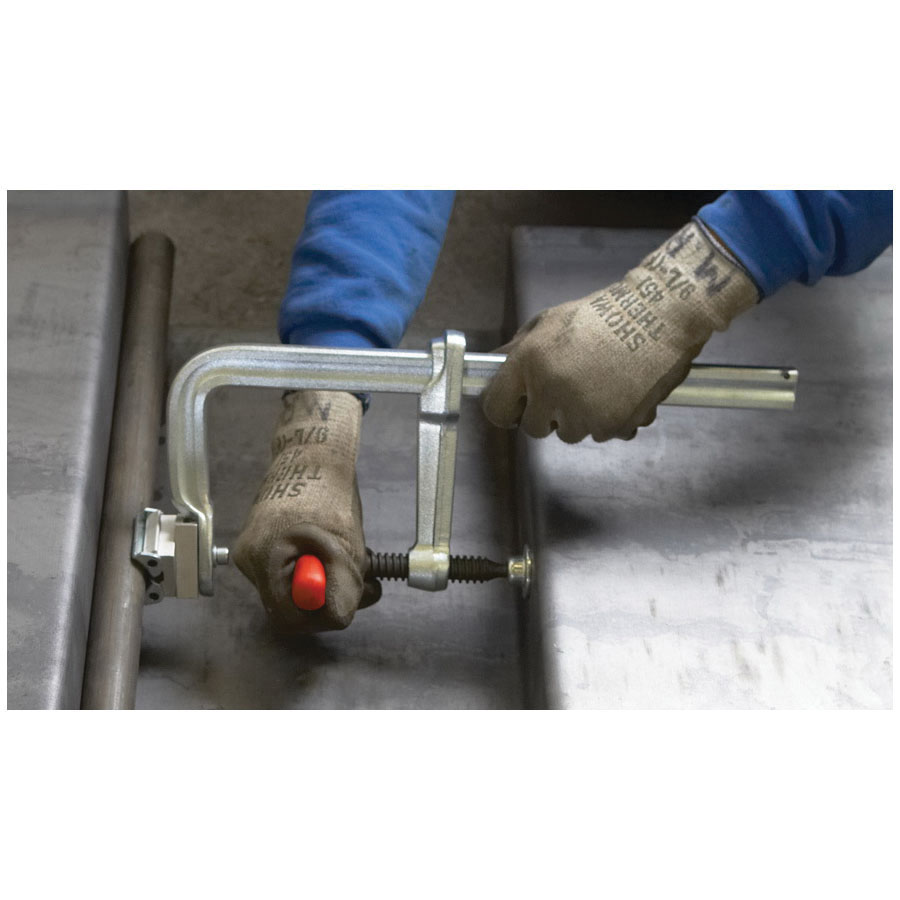

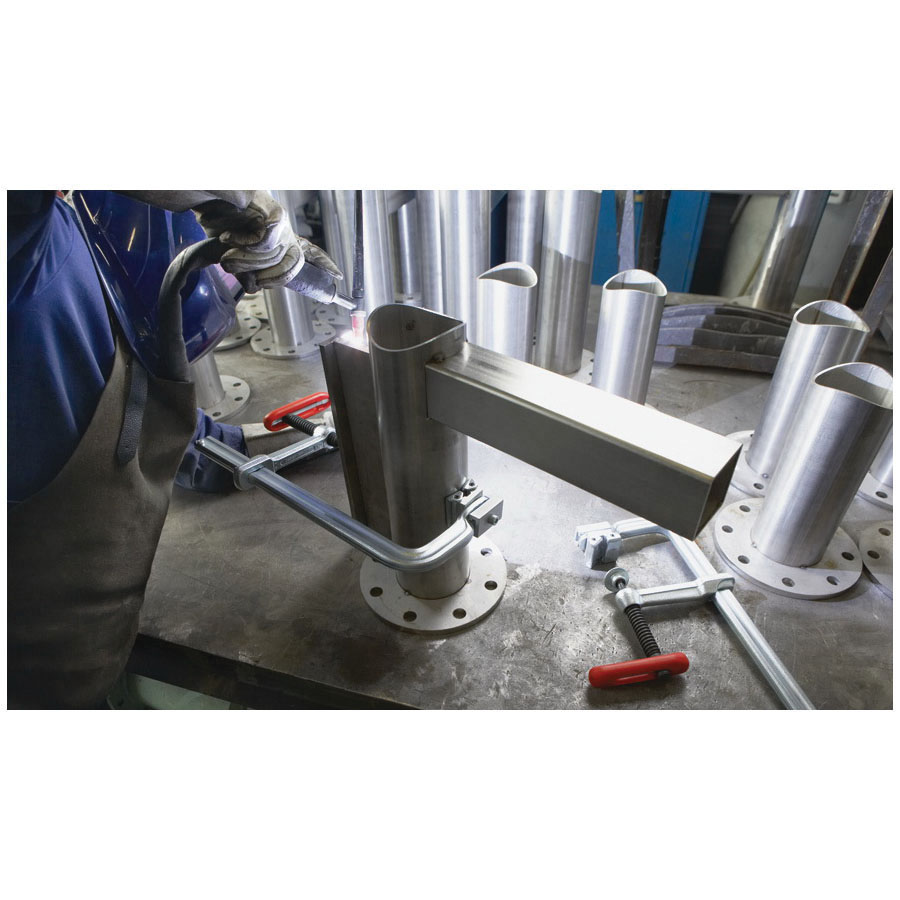

  • Clamping and spreading of flat round, oval and angled workpieces

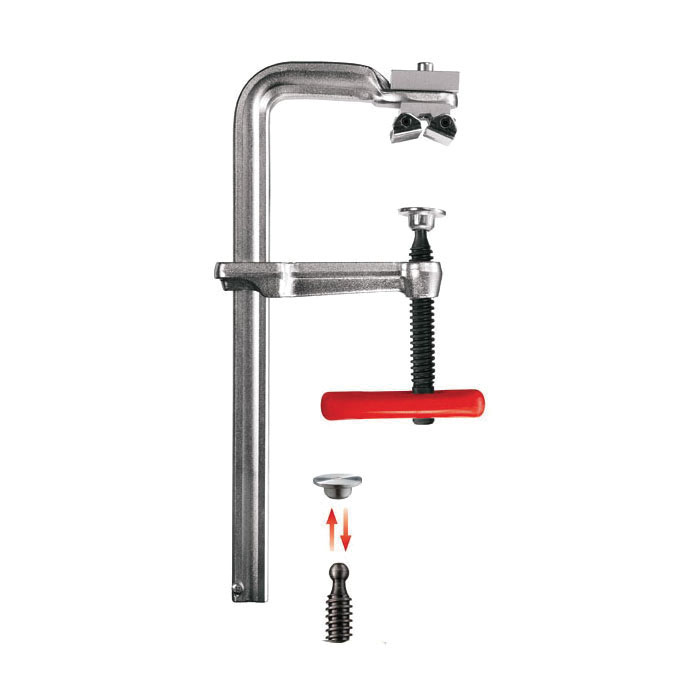

  • Pressure plates can easily be replaced without using any tools
  • 11 in capacity with VAD in place
  • Spreading capacity is 9 to 20 in
  • Heat-treated, high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life and spatter resistant

Specifications

ApplicationClamping and Spreading Odd Shapes
Bar MaterialSteel
Clamping Capacity12 in
Clamping Pressure2600 lb
Handle Size4-3/4 in L
Handle TypeT-Handle
Nominal Rail Size1-3/16 x 19/32 in
Spindle Diameter0.78 in
Swivel TypeReplaceable
Throat Depth4-3/4 in

Additional Information

IncludesSliding Arm
WarrantyLimited Lifetime
Country of OriginDE
