Bessey BESS 1200-S8

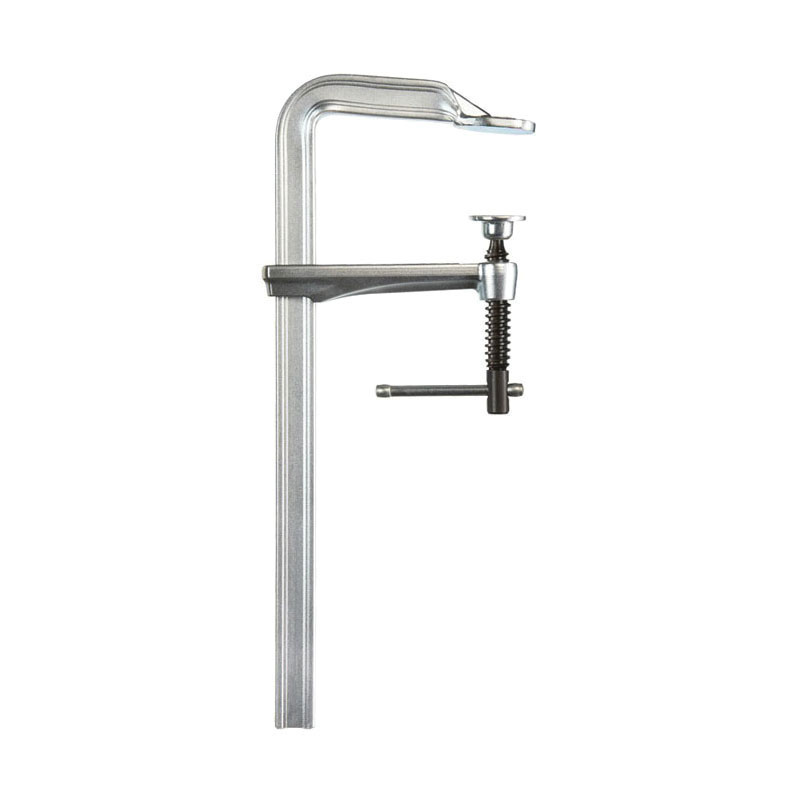

Bessey 1200-S8 Light Duty F-Style Bar Clamp, 5-1/2 in D Throat, 8 in Clamping, Replaceable Swivel

UPC: 788502200325
UNSPSC: 31162903
Manufacturer PN: 1200-S8
$84.46 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Bar Clamp, Light Duty F-Style, Series: 1200-S, 5-1/2 in Throat Depth, 8 in Clamping, Replaceable Swivel, 1-1/2 in Swivel Pad, ACME Threaded Spindle, 0.7 in Spindle Diameter, Steel Bar, 1320 lb Clamping, 1-3/32 x 7/16 in Nominal Rail, T-Handle Handle, 4.65 in L Handle, Steel Handle, Zinc Plated

  • Features

  • Patented rail profile offers more clamp force with fewer spindle turns
  • New U-shaped sliding arm offers straight line power transmission and great stability
  • High-strength electro-galvanized sliding pin T-handle rounded ends for comfort, size engineered to load capacity
  • Standard pads are field replaceable
  • Heat-treated, high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life and spatter resistant

Specifications

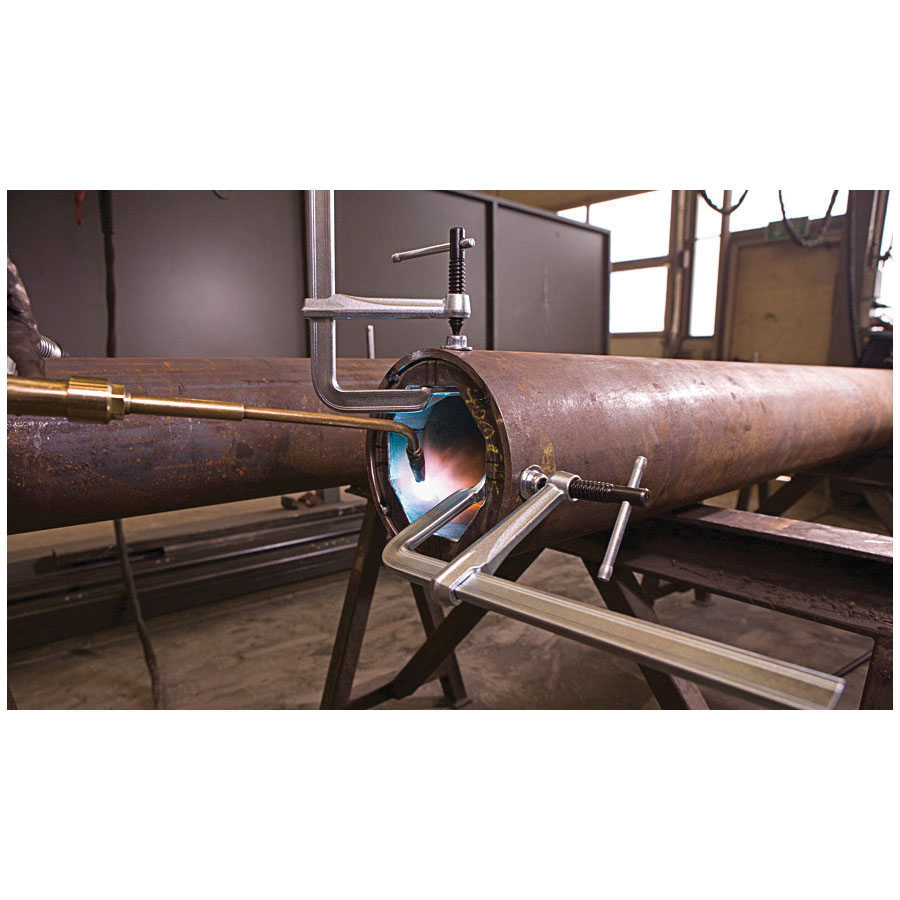

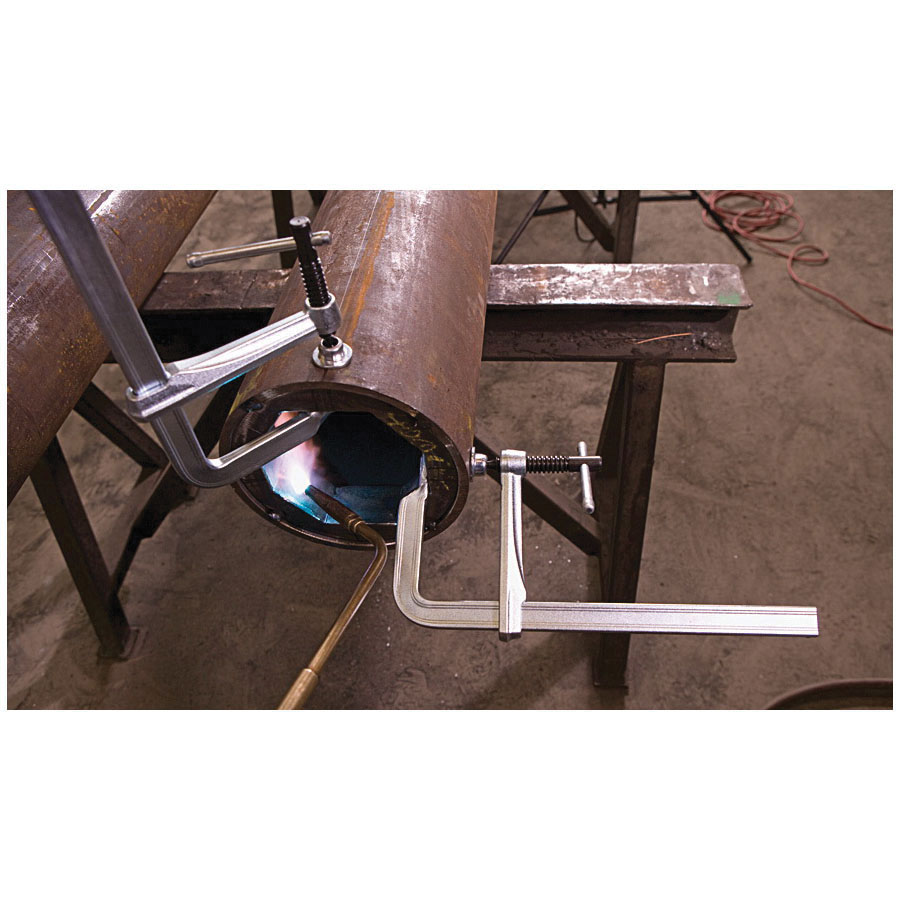

ApplicationWelding and Fabricating Applications
Bar MaterialSteel
Clamping Capacity8 in
Clamping Pressure1320 lb
FinishZinc Plated
Handle MaterialSteel
Handle Size4.65 in L
Handle TypeT-Handle
Nominal Rail Size1-3/32 x 7/16 in
Series1200-S
Spindle Diameter0.7 in
Spindle TypeACME Threaded
Swivel Pad1-1/2 in
Swivel TypeReplaceable
Throat Depth5-1/2 in
TypeLight Duty F-Style
