Bessey BESS LMU2.006

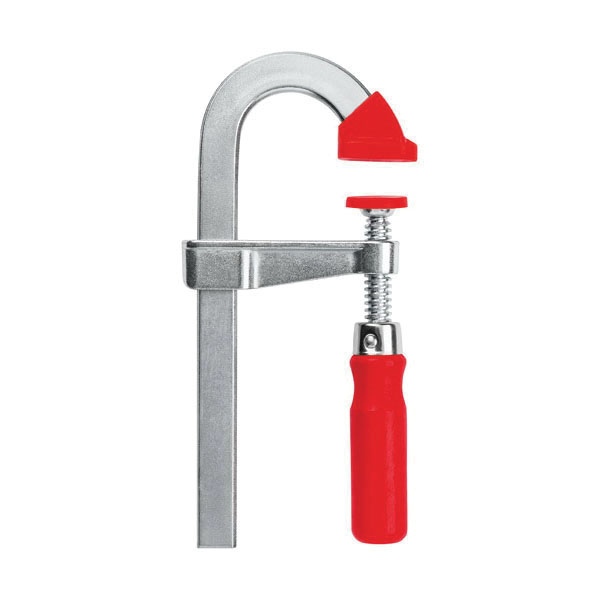

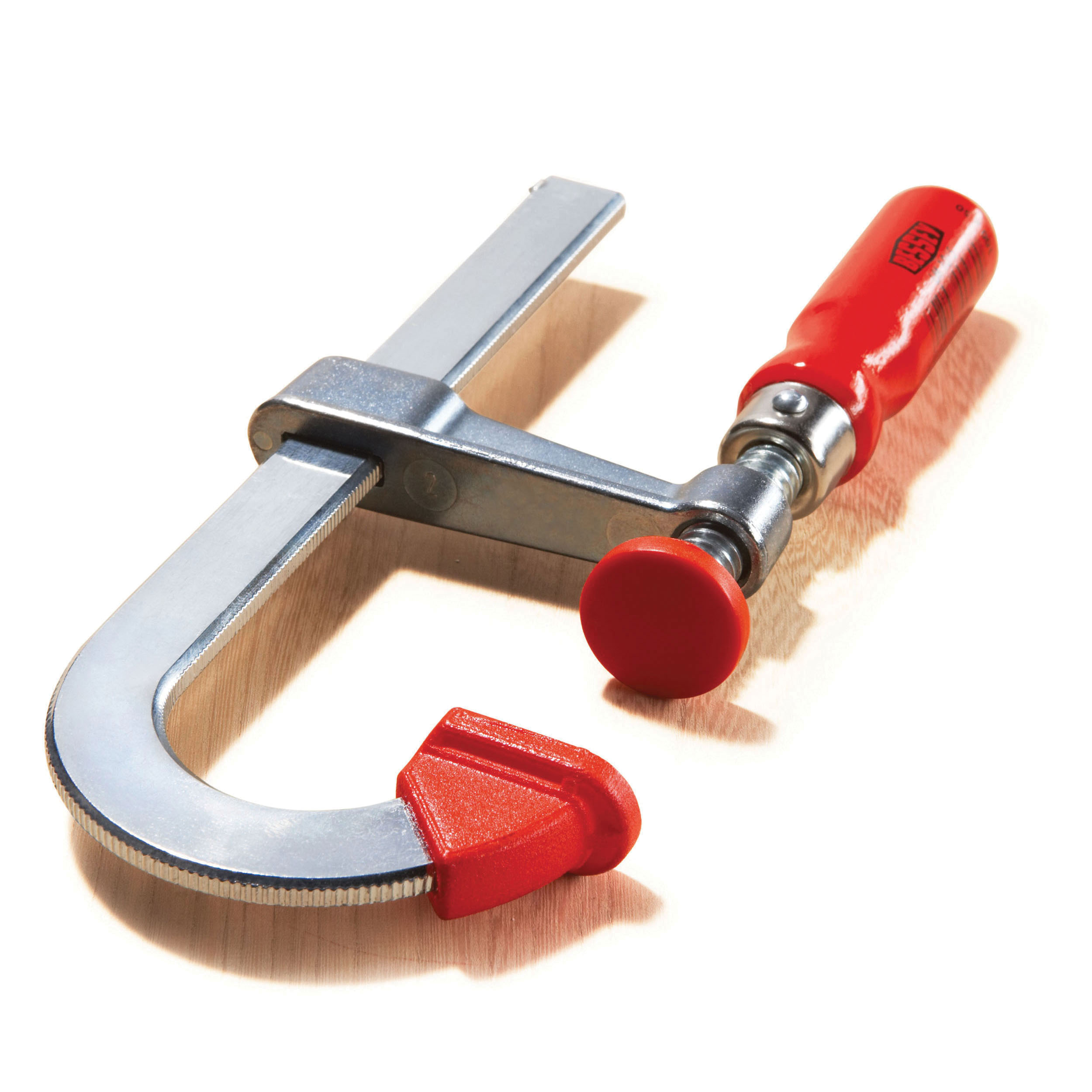

Bessey LMU2.006 U-Style Step-Over Bar Clamp, 2 in D Throat, 6 in Clamping, Replaceable Swivel

UPC: 091162013250
UNSPSC: 31162903
Manufacturer PN: LMU2.006
$9.68 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Step-Over Bar Clamp, U-Style, Series: LM Series, 2 in Throat Depth, 6 in Clamping, Replaceable Swivel, 7/8 in Swivel Pad, 0.395 in Screw, ACME Threaded Spindle, 0.393 in Spindle Diameter, 3/4 in Bar, 19/32 in Bar Thickness, Die Cast Zinc Bar, 11/16 x 1-1/8 in Clamp Face, 330 lb Clamping, 19/32 x 3/16 in Nominal Rail, 3 in L Handle, Wood Handle

  • Features

  • Small and very handy
  • Lightweight

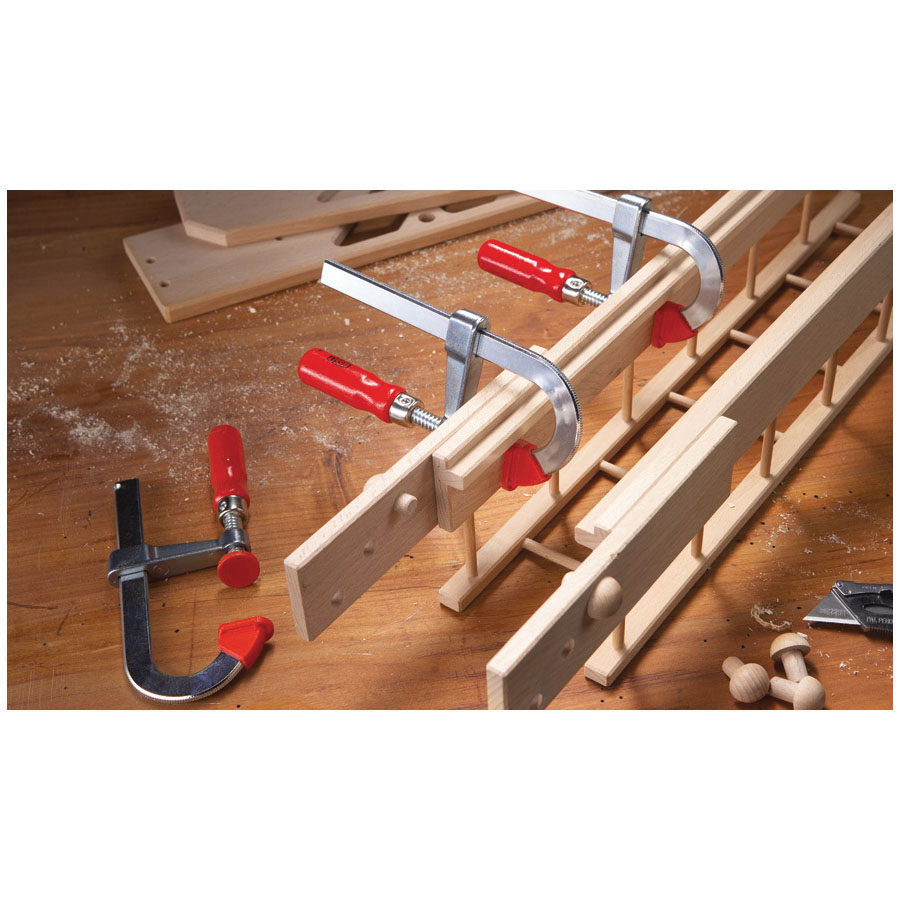

  • Helps to clamp in hard to reach spots
  • U shaped fixed jaw for reaching over small obstructions
  • Zinc die cast jaws are light weight but still hold up to 550 lb of clamping force
  • Serrated rail for slip resistant grip
  • Large ACME thread for quick, smooth operation
  • Non-marring plastic caps on pressure pad

Specifications

ApplicationWoodworking Applications
Bar MaterialDie Cast Zinc
Bar Size3/4 in
Bar Thickness19/32 in
Clamp Face11/16 x 1-1/8 in
Clamping Capacity6 in
Clamping Pressure330 lb
Handle MaterialWood
Handle Size3 in L
Nominal Rail Size19/32 x 3/16 in
Screw Size0.395 in
SeriesLM Series
Spindle Diameter0.393 in
Spindle TypeACME Threaded
Swivel Pad7/8 in
Swivel TypeReplaceable
Throat Depth2 in
TypeU-Style
