Bessey BESS 2400J-12

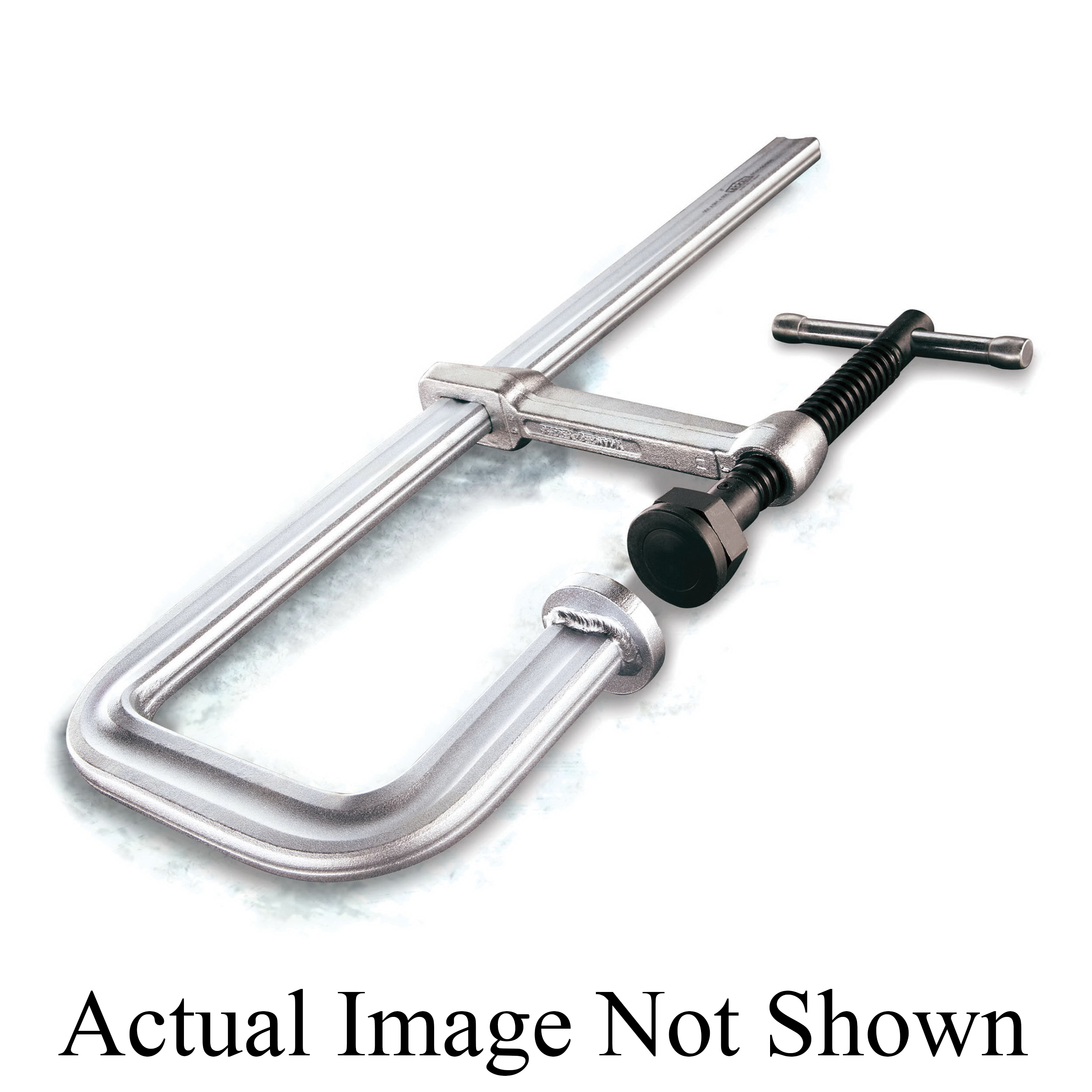

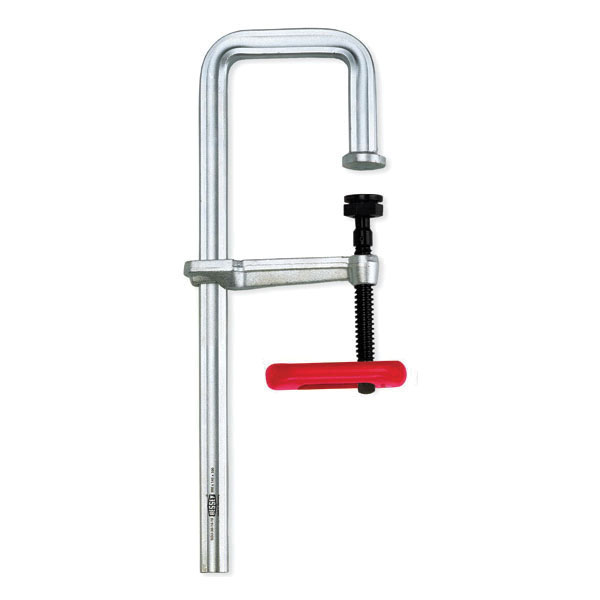

Bessey 2400J-12 J Series Regular Duty F-Style Step-Over Bar Clamp, 5-1/2 in D Throat, 12 in Clamping, Removable Swivel

Invoice description: Clamp, Welding, F-style Wi 26 H Grip, Heavy

UPC: 788502190329
UNSPSC: 31162903
Manufacturer PN: 2400J-12
$216.82 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Step-Over Bar Clamp, Regular Duty F-Style, Series: J Series, 5-1/2 in Throat Depth, 12 in Clamping, Removable Swivel, 1-1/2 in Swivel Pad, 25/32 in Screw, 25/32 in Spindle Diameter, Steel Bar, 1-1/4 x 2-1/2 in Clamp Face, 1100 lb Clamping, 1-3/16 x 19/32 in Nominal Rail, Ergonomic Handle, 4-5/8 in L Handle, Steel Handle

  • Features

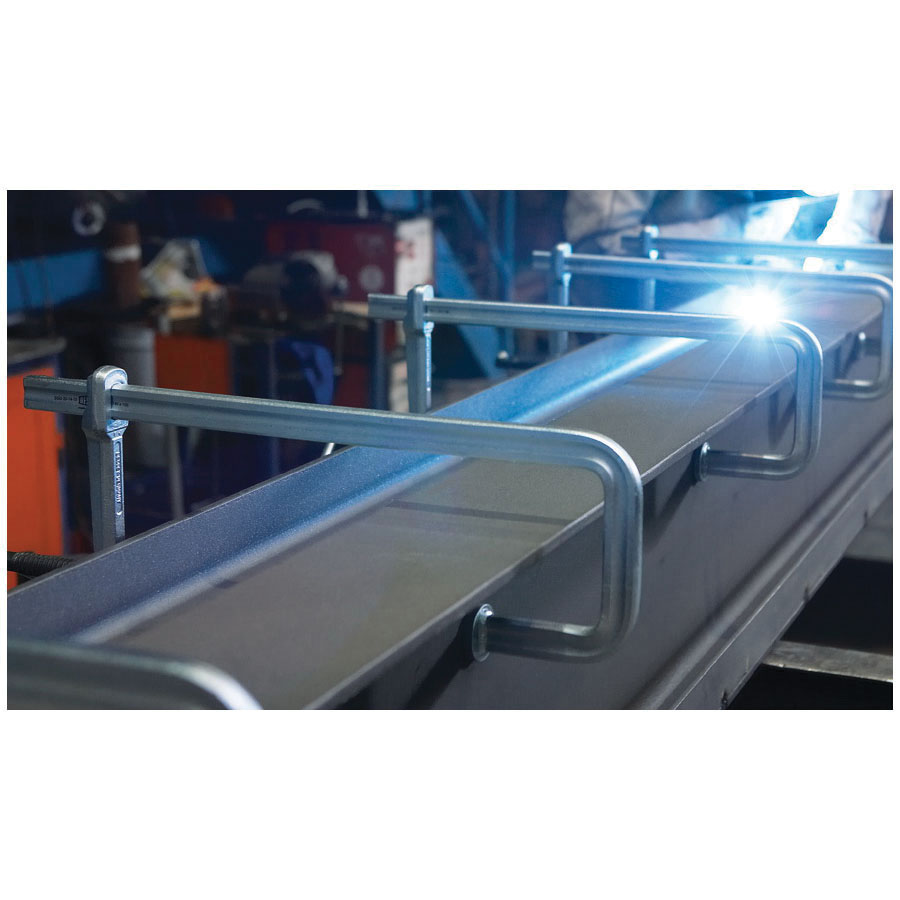

  • The return rail lets the J clamps "step-over" the lip on channel iron, angle-iron, I-Beam or other obstructions
  • Rail step-over up to 4 in
  • MorPad tilts to 35 deg patented construction extends clamp life at full capacity
  • Ergonomic grip is standard equipment
  • Forged sliding arm is made from tempered and drop forged steel for long service life
  • High-strength electro-galvanized sliding pin T-handle rounded ends for comfort, size engineered to load capacity
  • Heat-treated, high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life and spatter resistant

Specifications

ApplicationWelding and Fabricating Applications
Bar MaterialSteel
Clamp Face1-1/4 x 2-1/2 in
Clamping Capacity12 in
Clamping Pressure1100 lb
Handle MaterialSteel
Handle Size4-5/8 in L
Handle TypeErgonomic
Nominal Rail Size1-3/16 x 19/32 in
Screw Size25/32 in
SeriesJ Series
Spindle Diameter25/32 in
Swivel Pad1-1/2 in
Swivel TypeRemovable
Throat Depth5-1/2 in
TypeRegular Duty F-Style

Additional Information

WarrantyLimited Lifetime
Country of OriginDE
