Bessey BESS 1800-S8

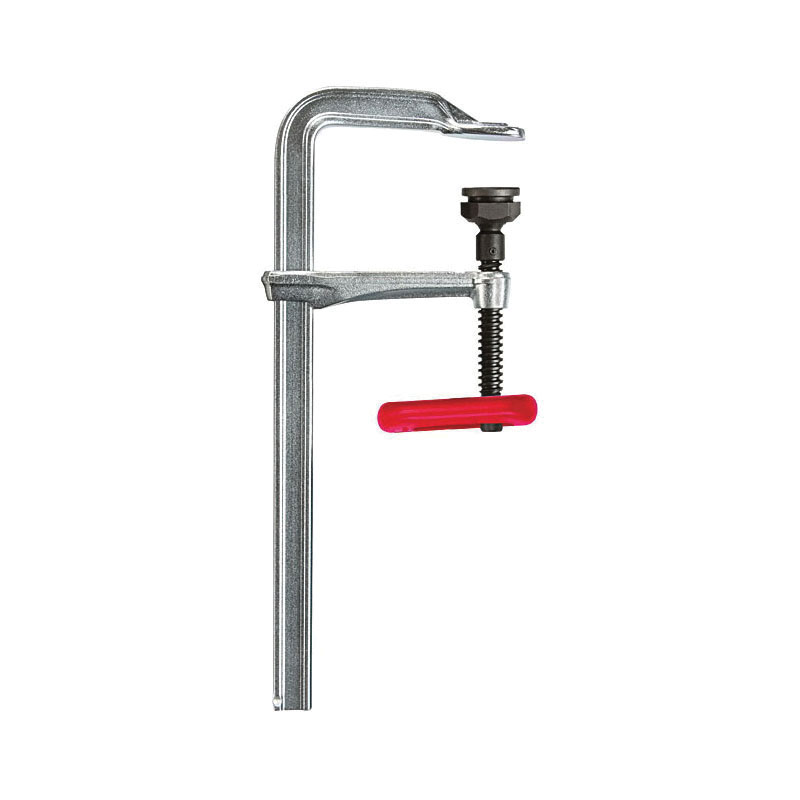

Bessey 1800-S8 1800S Medium Duty F-Style Bar Clamp, 4-3/4 in D Throat, 8 in Clamping, Removable Swivel

Invoice description: Clamp, Welding, F-style Wi 26 H Grip, Heavy

UPC: 788502200004
UNSPSC: 31162903
Manufacturer PN: 1800-S8
$158.62 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Bar Clamp, Medium Duty F-Style, Series: 1800S, 4-3/4 in Throat Depth, 8 in Clamping, Removable Swivel, 1-1/2 in Swivel Pad, 3/4 in Screw, 3/4 in Spindle Diameter, 7/16 in W Bar, 1-3/32 in Bar Thickness, Steel Bar, 1-1/2 x 1 in Clamp Face, 1980 lb Clamping, 1-3/32 x 7/16 in Nominal Rail, Ergonomic Grip Handle, 4.65 in L Handle, Plastic Handle, Zinc Plated

  • Features

  • MorPad tilts to 35 deg patented construction extends clamp life at full capacity
  • Patented rail profile offers more clamp force with fewer spindle turns
  • Ergonomic grip is standard equipment
  • New U-shaped sliding arm offers straight line power transmission and great stability
  • High-strength electro-galvanized sliding pin T-handle rounded ends for comfort, size engineered to load capacity
  • Heat-treated, high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life and spatter resistant

Specifications

ApplicationFor medium to heavy work holding, assembly, fabrication, repair and industrial applications
Bar MaterialSteel
Bar Size7/16 in W
Bar Thickness1-3/32 in
Clamp Face1-1/2 x 1 in
Clamping Capacity8 in
Clamping Pressure1980 lb
FinishZinc Plated
Handle MaterialPlastic
Handle Size4.65 in L
Handle TypeErgonomic Grip
Nominal Rail Size1-3/32 x 7/16 in
Screw Size3/4 in
Series1800S
Spindle Diameter3/4 in
Swivel Pad1-1/2 in
Swivel TypeRemovable
Throat Depth4-3/4 in
TypeMedium Duty F-Style

Additional Information

IncludesPatented Rail Profile, Force Optimized Drop Forged Sliding Arm and MorPad
WarrantyLimited Lifetime
Country of OriginDE
