Midland Industries 64510

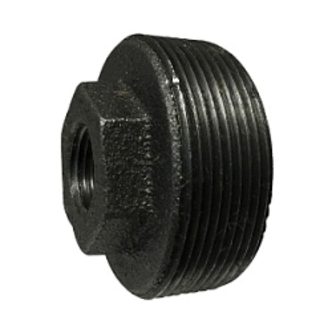

Midland Industries 64510 Hex Reducing Bushing, 1 x 1/4 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Galvanized, Import
Invoice description:
1 M-nptx1/4 F-npt 150 Lb G Alv Malleable Iron He
UNSPSC:
40172306
Manufacturer PN: 64510
Factory OrderEstimated to ship in 14 days
--Price Unavailable--
Midland Industries Hex Reducing Bushing, Fitting/Connector Type: Bushing, 1 x 1/4 in Nominal, MNPT x FNPT End Style, 1.12 in Hex, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, 1.13 in L, Import
Features
- With better molds we can reduce parting lines and rough edges resulting in better fluid flow
- By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting
- All fittings are 100% pressure tested to 300 Class
- 5% min elongation
- 28.4kg/mm minimum tensile strength
Specifications
Dimensions1.13 in L
Domestic/ImportImport
End StyleMNPT x FNPT
FinishGalvanized
Fitting/Connector TypeBushing
Hex Size1.12 in
MaterialMalleable Iron
Nominal Size1 x 1/4 in
Pressure Class150 lb
Pressure Rating300 psi
Additional Information
Standards/ApprovalANSI B 16.3|ANSI B 16.14|ANSI B 2.1 or BS 21|ASME B1.20.1|FM Approved|UL Listed|RoHS Compliant
Country of OriginCN
