Irwin Hanson VG 7545

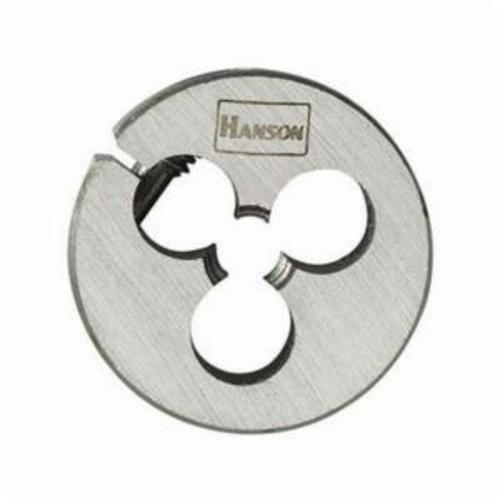

Irwin Hanson 7545 Adjustable Round Threading Die, 1/2-20 Thread UNF Thread, 1 in OD Die, High Carbon Steel
Invoice description:
1/2" - 20 Nf, H.c.s. Adj . Left Hand Die - Bu
Factory Order
Irwin Hanson, 7545, Adjustable Round Threading Die, Measurement System: Imperial, 1/2-20 Thread, UNF Thread, 1 in OD Die, 1 in Hex, Left Thread, High Carbon Steel
Features
- High carbon steel is a soft, durable metal, commonly used in general purpose applications on abrasive materials and non-ferrous materials
- Hydro carbon steel for hand tapping applications
- Die size is etched on each tool for easy identification
- Adjustable dies allow the user to under or over cut their threads
- Fits into adjustable guide or plain die stock handles
- For automotive parts requiring extreme pressures
- Left hand dies cut threads with a left hand rotation
Specifications
ApplicationFor a precision threading with the adjustment of die made by set screw
Die Outside Diameter1 in
Hex Size1 in
MaterialHigh Carbon Steel
Measurement SystemImperial
Thread DirectionLeft
Thread Size1/2-20
Thread TypeUNF
TypeAdjustable Round
Additional Information
Standards/ApprovalUS Federal Spec GGG-D-296
Country of OriginUS
