Irwin Hanson VG 23622

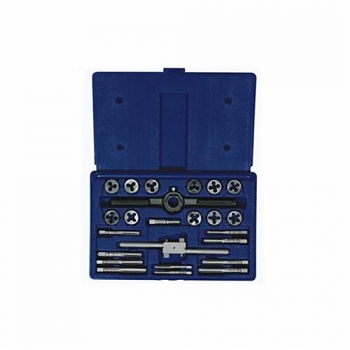

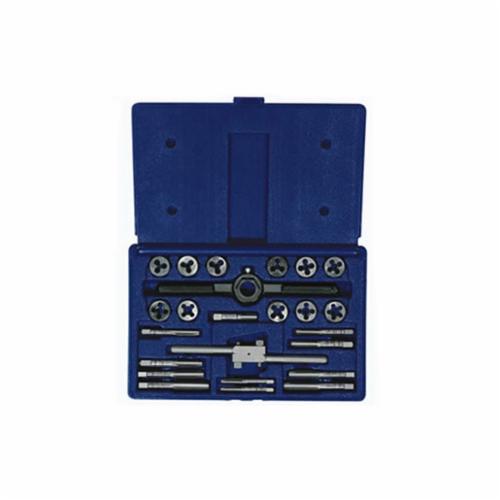

Irwin Hanson 23622 Combination Tap and Die Set, 24 Pieces, 1/4-20 to 1/2-20 Tap Thread, 1/4-20 to 1/2-20 Die Thread, NPT/UNC/UNF Thread, Round Die
Invoice description:
24 Pc Taps & 1" Solid Ro U D Dies Set
Factory Order
Irwin Hanson, 23622, Combination Tap and Die Set, Measurement System: Imperial, 24 Piece, 1/4-20 to 1/2-20 Tap, 1/4-20 to 1/2-20 Die Thread, NPT/UNC/UNF Thread Standard, Round Die Shape, Plug Tap Chamfer, High Carbon Steel Tap, Plastic Case Package Type, Adjustable Die: Yes
Specifications
Adjustable Die (Yes/No)Yes
Die MaterialHigh Carbon Steel
Die ShapeRound
Die Thread Size1/4-20 to 1/2-20
Measurement SystemImperial
Number of Pieces24
Package TypePlastic Case
Tap Chamfer TypePlug
Tap MaterialHigh Carbon Steel
Tap Thread Size1/4-20 to 1/2-20
Thread StandardNPT/UNC/UNF
TypeCombination
Additional Information
Includes1420 1/4-20, 1427 5/16-18, 1434 3/8-16, 1439 7/16-14, 1444 1/2-13 UNC, 1423 1/4-28, 1429 5/16-24, 1436 3/8-24, 1440 7/16-20, 1445 1/2-20 UNF Plug Taps, 1902 1/8-27 NPT Pipe Tap, 3120 1/4-20, 3127 5/16-18, 3134 3/8-16, 3139 7/16-14, 3144 1/2-13 UNC, 3123 1
Country of OriginUS
