Union Butterfield UTD 8110609

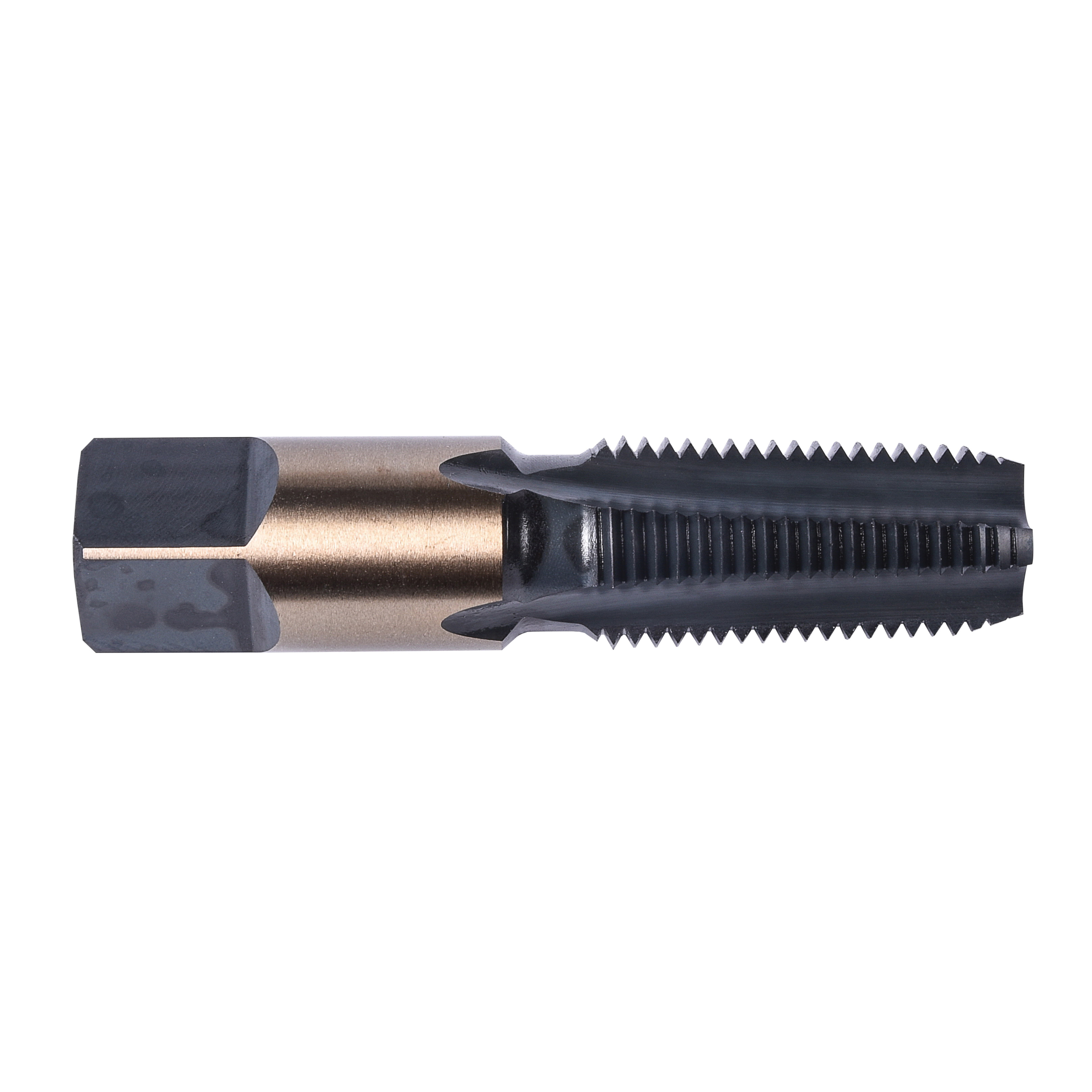

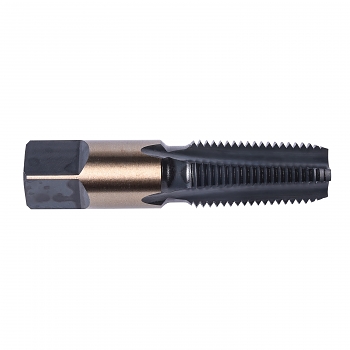

Union Butterfield 6008963 6541 Work-Rite Straight Flute Pipe Tap, 2-11-1/2 Thread
Invoice description:
6541: Work-rite Industri Al Utd 8110609 Ubc 6
Factory Order
Union Butterfield Pipe Tap, Straight Flute, Series: 6541 Work-Rite, Measurement System: Imperial, 2-11-1/2 Thread, NPT Thread Standard, Semi-Bottoming/Tapered Chamfer, 1-3/4 in Thread Length, 4-1/2 in Overall Length, 7 Flutes, Right Hand Cutting Direction, 1-7/8 in Shank Diameter, 2-7/32 in Tap Drill, 1.406 in Square, HSS, Bright, Medium Hook
Features
- Medium hook for multi-material tapping
- Generally used for pipe fittings and couplings in most ferrous and non-ferrous materials
- The nominal size of a pipe tap is that of the pipe fitting to be tapped and not the actual size of the tap
- NPT threads require the use of a sealant such as teflon tape or pipe compound to ensure a tight joint
Specifications
ApplicationFor through or blind holes and general purpose applications
Chamfer TypeSemi-Bottoming/Tapered
Cutting DirectionRight Hand
Finish/CoatingBright
Hook TypeMedium
MaterialHSS
Measurement SystemImperial
Number of Flutes7
Overall Length4-1/2 in
Series6541 Work-Rite
Shank Diameter1-7/8 in
Square Size1.406 in
Tap Drill Size2-7/32 in
Thread Length1-3/4 in
Thread Size2-11-1/2
Thread StandardNPT
TypeStraight Flute
Additional Information
Standards/ApprovalANSI B94.9|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
