Union Butterfield UTD 1716738

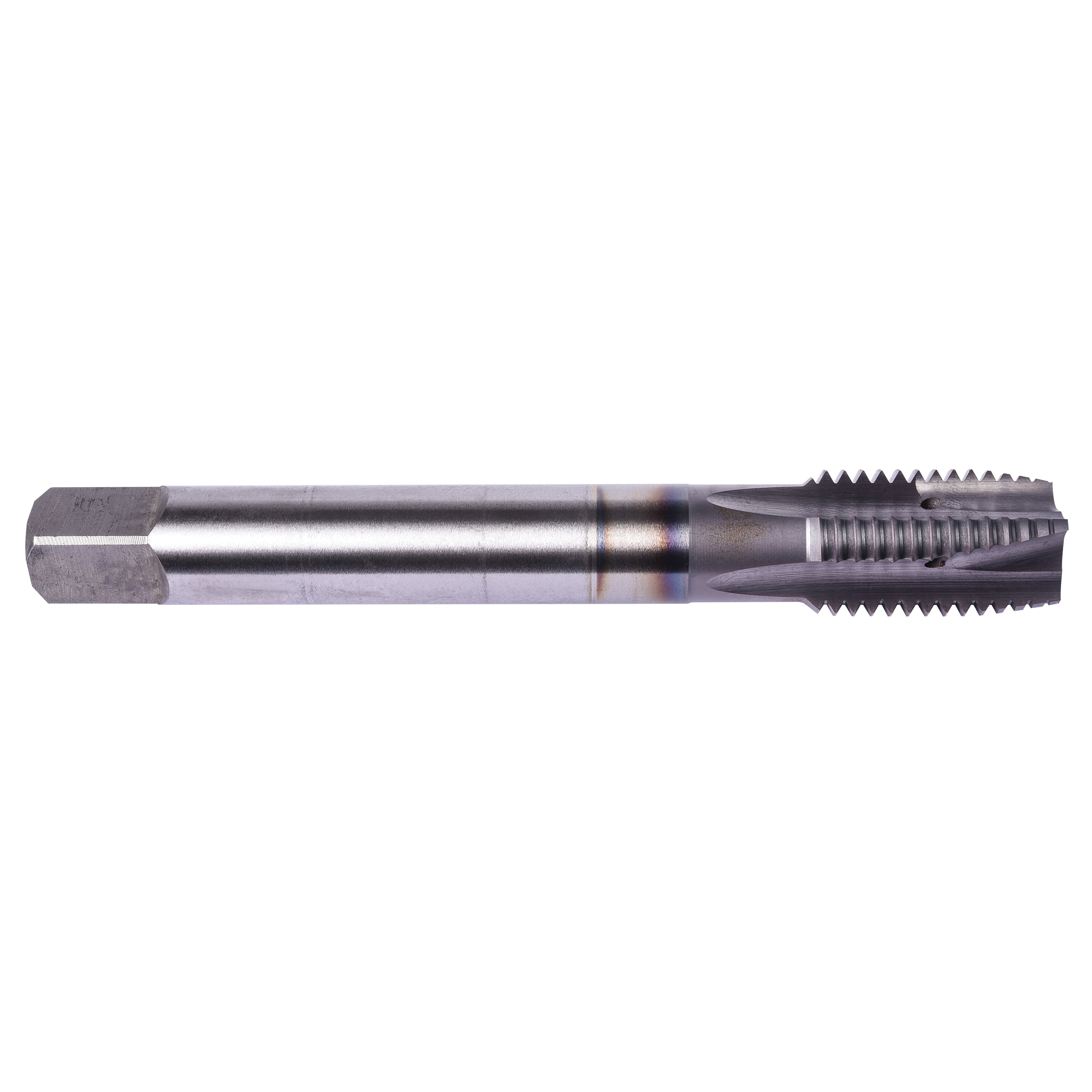

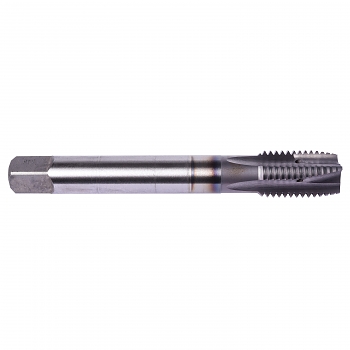

Union Butterfield 6008013 1675 Applix MXP High Performance Spiral Point Tap, Right Hand Cutting, M20x2.5 Thread, Plug Chamfer, 4 Flutes, TiCN Coated, HSS
Invoice description:
1675: Applix Spiral Poin T Utd 1716738 Ubc 16
Factory Order
Union Butterfield Spiral Point Tap, High Performance, Series: 1675 Applix MXP, Measurement System: Metric, Coarse Thread Standard, M20x2.5 Thread, Plug Chamfer, 4 Flutes, HSS, TiCN Coated, Class of Fit: 6H, Right Hand Cutting Direction, 32 mm Thread Length, 140 mm Overall Length, 0.652 in Shank Diameter, Steel, Stainless Steel, Titanium, Nickel, Copper and Aluminum Magnesium Material Application, Yes Through Coolant
Features
- Coolant through design allows higher tapping speeds and eliminates the problems associated with inadequate coolant in horizontal or deep hole applications
Specifications
ApplicationFor multi applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingTiCN Coated
MaterialHSS
Material ApplicationSteel, Stainless Steel, Titanium, Nickel, Copper and Aluminum Magnesium
Measurement SystemMetric
Number of Flutes4
Overall Length140 mm
Series1675 Applix MXP
Shank Diameter0.652 in
Thread Length32 mm
Thread SizeM20x2.5
Thread StandardCoarse
Through Coolant (Yes/No)Yes
TypeHigh Performance
Additional Information
Standards/ApprovalANSI Specified|DIN Rated|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
