Union Butterfield UTD 1060534

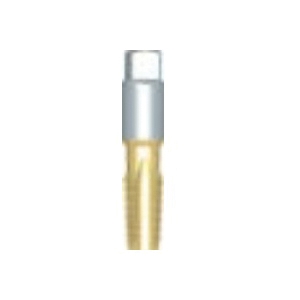

Union Butterfield 6007385 TN1543 Dryseal Straight Flute Pipe Tap, 3/4-14 Thread
Invoice description:
Tn1543: Production Taper P Utd 1060534 Ubc T
Factory Order
Union Butterfield Pipe Tap, Dryseal Straight Flute, Series: TN1543, Measurement System: Imperial, 3/4-14 Thread, NPTF Thread Standard, 1-3/8 in Thread Length, 3-1/4 in Overall Length, 5 Flutes, Right Hand Cutting Direction, 0.906 in Shank Diameter, 0.679 in Square, HSS, TiN Coated, Medium Hook
Features
- Used where a leak proof pressure tight joint is required without the use of a sealing compound
- Tin coated option increases surface hardness and improves tool life
Specifications
ApplicationFor blind and through hole applications
Cutting DirectionRight Hand
Finish/CoatingTiN Coated
Hook TypeMedium
MaterialHSS
Measurement SystemImperial
Number of Flutes5
Overall Length3-1/4 in
SeriesTN1543
Shank Diameter0.906 in
Square Size0.679 in
Thread Length1-3/8 in
Thread Size3/4-14
Thread StandardNPTF
TypeDryseal Straight Flute
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
