Union Butterfield UTD 1060144

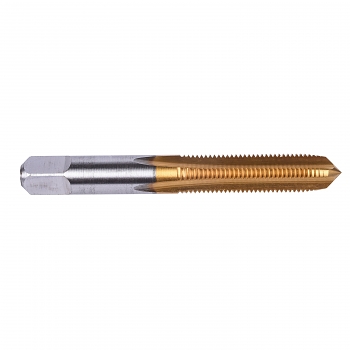

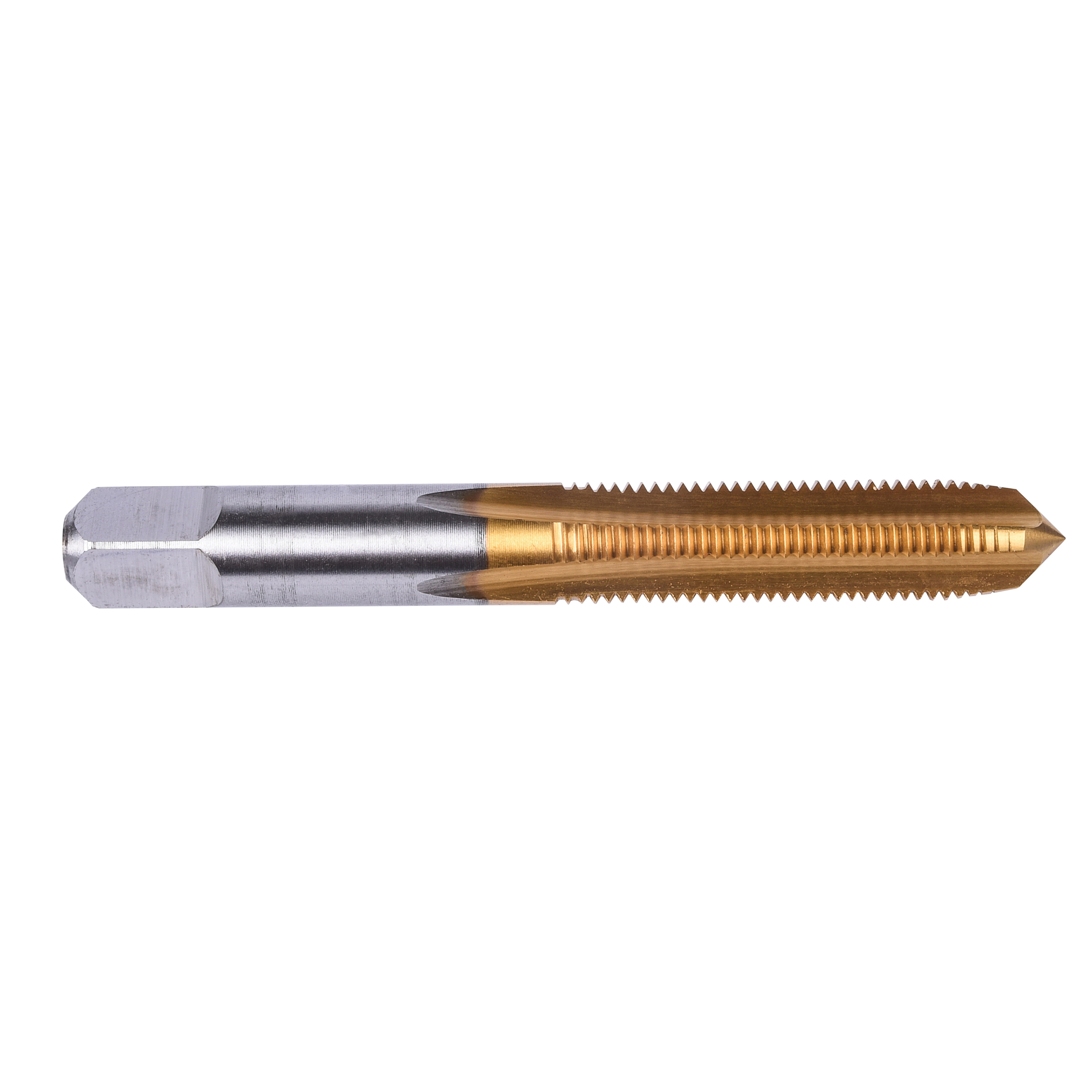

Union Butterfield Straight Flute Hand Tap, General Purpose, Series: TN1500, Measurement System: Imperial, UNC, 3/4-10, Bottoming Chamfer, 4 Flutes, HSS, TiN Coated, Class of Fit: 3B, Right Hand Cutting, 2 in Thread Length, 4-1/4 in Overall Length, 0.59 in Shank Dia, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit

• Features

• Similar in design to the 1500 series but TiN coated for enhanced performance
• The hard, smooth finish provides greater lubricity, increases tool life, improves thread flank finish and allows higher tapping speeds
• Titanium nitride is a gold colored ceramic coating applied by physical vapor deposition (PVD)
• High hardness combined with low friction properties ensures considerably longer tool life, or alternatively, better cutting performance from tools which have not been coated
• TiN coating is used mainly for drills and taps
• A medium alloyed high speed steel that has good machinability and good performance
• HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications

Specifications

Additional Information

Documents

• Catalog
