Union Butterfield UTD 1052874

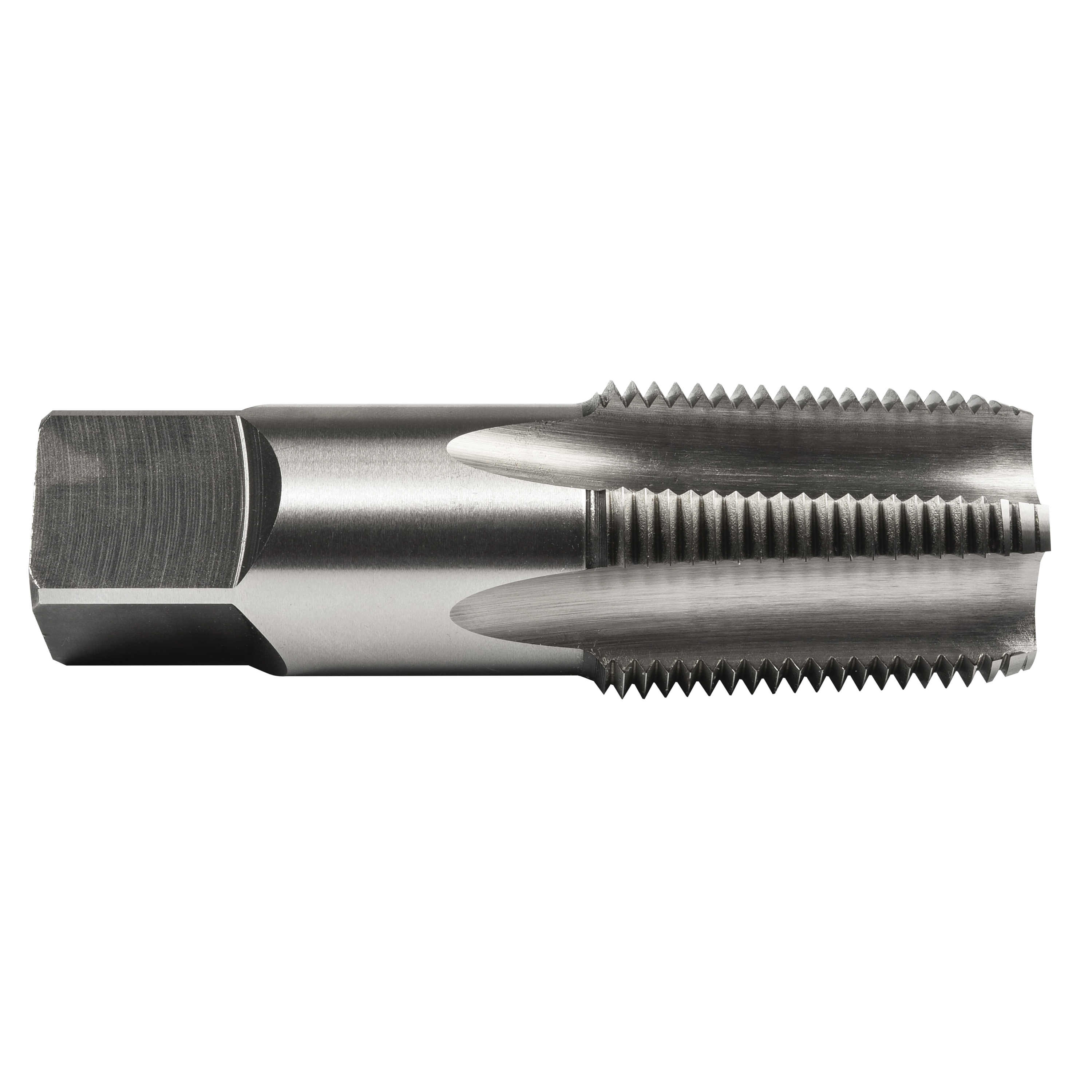

Union Butterfield 6007228 1545A Straight Flute Pipe Tap, 3/4-14 Thread
Invoice description:
1545a: Production Taper Pi Utd 1052874 Ubc 1
Factory Order
Union Butterfield Pipe Tap, Straight Flute, Series: 1545A, Measurement System: Imperial, 3/4-14 Thread, NPT Thread Standard, Tapered Chamfer, 1-3/8 in Thread Length, 3-1/4 in Overall Length, 5 Flutes, Right Hand Cutting Direction, 0.906 in Shank Diameter, 0.679 in Square, HSS, Steam Oxide, High Hook
Features
- Designed with a high hook and deep flutes to handle the tough curly chips of free cutting materials such as low carbon and leaded steels, boiler plate, aluminum and die castings
- Steam oxide surface treatment to prevent galling and chipping
Specifications
ApplicationFor blind and through hole applications
Chamfer TypeTapered
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
Hook TypeHigh
MaterialHSS
Measurement SystemImperial
Number of Flutes5
Overall Length3-1/4 in
Series1545A
Shank Diameter0.906 in
Square Size0.679 in
Thread Length1-3/8 in
Thread Size3/4-14
Thread StandardNPT
TypeStraight Flute
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
