Union Butterfield UTD 1050039

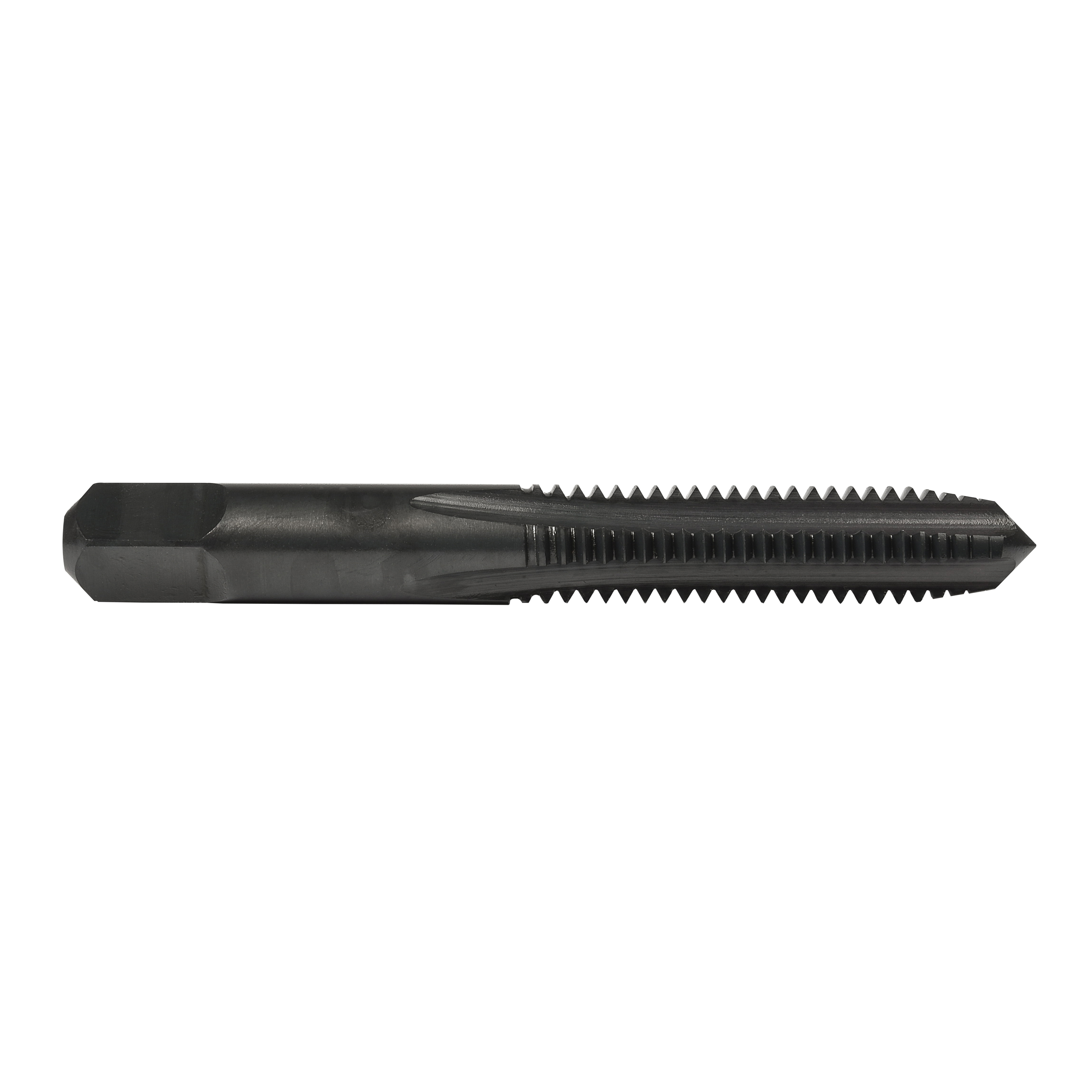

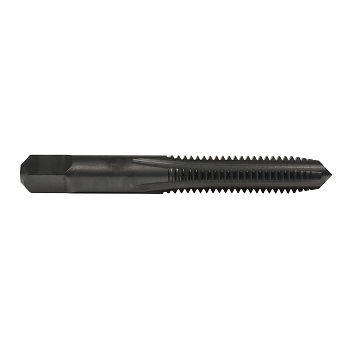

Union Butterfield 6006623 1500A General Purpose Straight Flute Hand Tap, Right Hand Cutting, 5/16-24 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Steam Oxide, HSS
Invoice description:
1500a Plug Chamfer: Stra Ig Utd 1050039 Ubc 1
Factory Order
Union Butterfield Straight Flute Hand Tap, General Purpose, Series: 1500A, Measurement System: Imperial, UNF, 5/16-24, Plug Chamfer, 4 Flutes, HSS, Steam Oxide, Class of Fit: 3B, Right Hand Cutting, 1-1/8 in Thread Length, 2-23/32 in Overall Length, 0.318 in Shank Dia, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit
Features
- Steam oxide treated to reduce wear and chip welding in harder ferrous materials
- Steam tempering gives a strongly adhering blue oxide surface that acts to retain cutting fluid and prevent chip to tool welding, thereby counteracting the formation of a built-up edge
- Steam tempering can be applied to any bright tool but is most effective on drills and taps
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypePlug
Class of Fit3B
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
MaterialHSS
Material ApplicationSteel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes4
Overall Length2-23/32 in
Series1500A
Shank Diameter0.318 in
Thread Length1-1/8 in
Thread LimitH3
Thread Size5/16-24
Thread StandardUNF
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
