Union Butterfield UTD 1013067

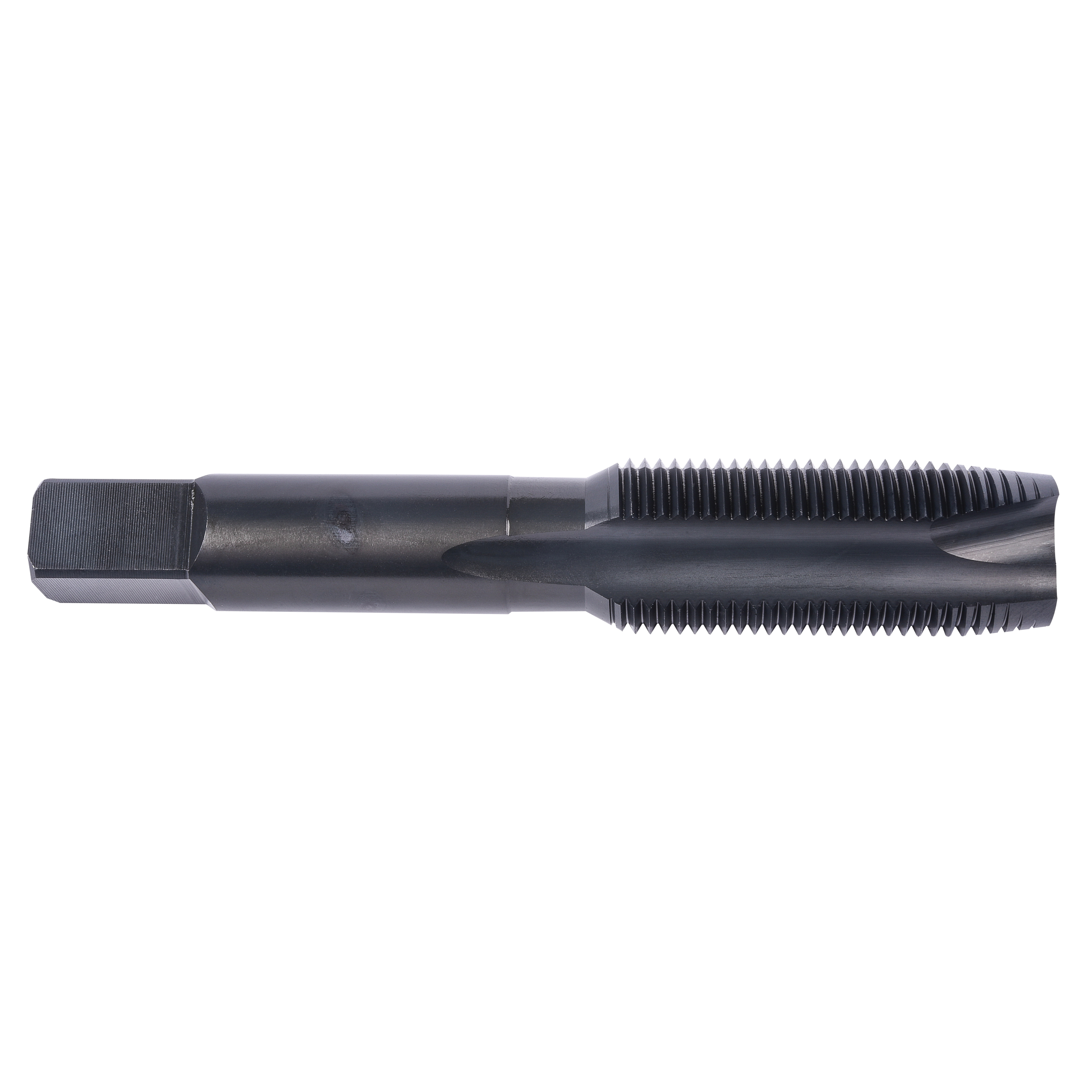

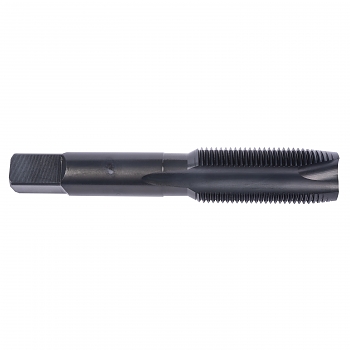

Union Butterfield 6009100 1985 High Hook Relieved Spiral Point Machine Tap, Right Hand Cutting, 7/8-9 Thread, Plug Chamfer, 4 Flutes, Steam Oxide, HSS
Invoice description:
1985: Spiral Point Produ Ct Utd 1013067 Ubc 1
Factory Order
Union Butterfield Spiral Point Machine Tap, High Hook Relieved, Series: 1985, Measurement System: Imperial, UNC Thread Standard, 7/8-9 Thread, Plug Chamfer, 4 Flutes, HSS, Steam Oxide, Class of Fit: 2B, Right Hand Cutting Direction, 2-7/32 in Thread Length, 4-11/16 in Overall Length, 0.523 in Shank Diameter, Steel, Stainless Steel, Titanium and Nickel Material Application
Features
- Type DDX taps feature a special OD and PD relief and increased back taper
- Designed to produce a class 2B fit
- Steam oxide reduces wear and prevents chip welding when through hole tapping in abrasive or harder ferrous materials
Specifications
ApplicationFor through hole applications where a free cutting action is desirable
Chamfer TypePlug
Class of Fit2B
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
MaterialHSS
Material ApplicationSteel, Stainless Steel, Titanium and Nickel
Measurement SystemImperial
Number of Flutes4
Overall Length4-11/16 in
Series1985
Shank Diameter0.523 in
Thread Length2-7/32 in
Thread Size7/8-9
Thread StandardUNC
TypeHigh Hook Relieved
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
