Union Butterfield UTD 1012899

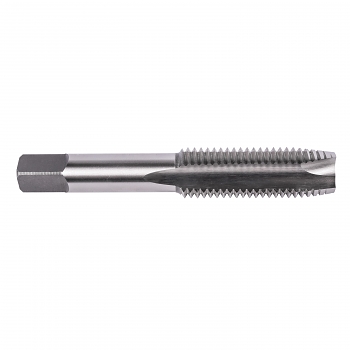

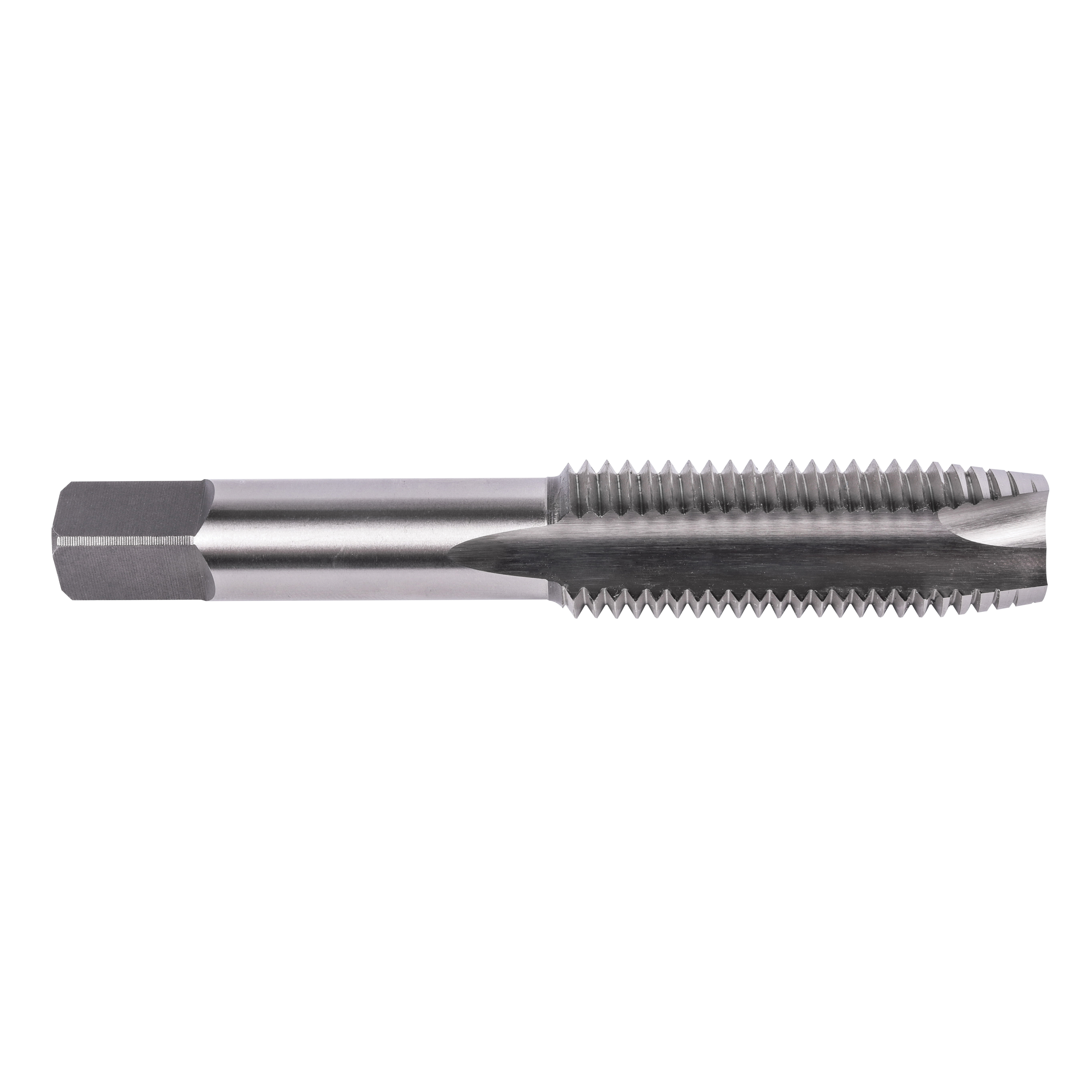

Union Butterfield 6008834 1785NR Non-Relieved Spiral Point Tap, Right Hand Cutting, M4.5x0.75 Thread, D4 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS
Invoice description:
1785nr: Spiral Point Pro Du Utd 1012899 Ubc 1
Factory Order
Union Butterfield Spiral Point Tap, Non-Relieved, Series: 1785NR, Measurement System: Metric, M4.5x0.75 Thread, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting Direction, 7/8 in Thread Length, 2-3/8 in Overall Length, 0.152 in Shank Diameter, D4 Thread Limit
Features
- Feature concentric threads with no pitch diameter relief
- These taps are particularly recommended for applications requiring close gauging fits and in older equipment that is not sufficiently rigid to accommodate the free cutting action of the regular 1785 series
Specifications
ApplicationFor through hole applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemMetric
Number of Flutes2
Overall Length2-3/8 in
Series1785NR
Shank Diameter0.152 in
Thread Length7/8 in
Thread LimitD4
Thread SizeM4.5x0.75
TypeNon-Relieved
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
