Union Butterfield UTD 1012867

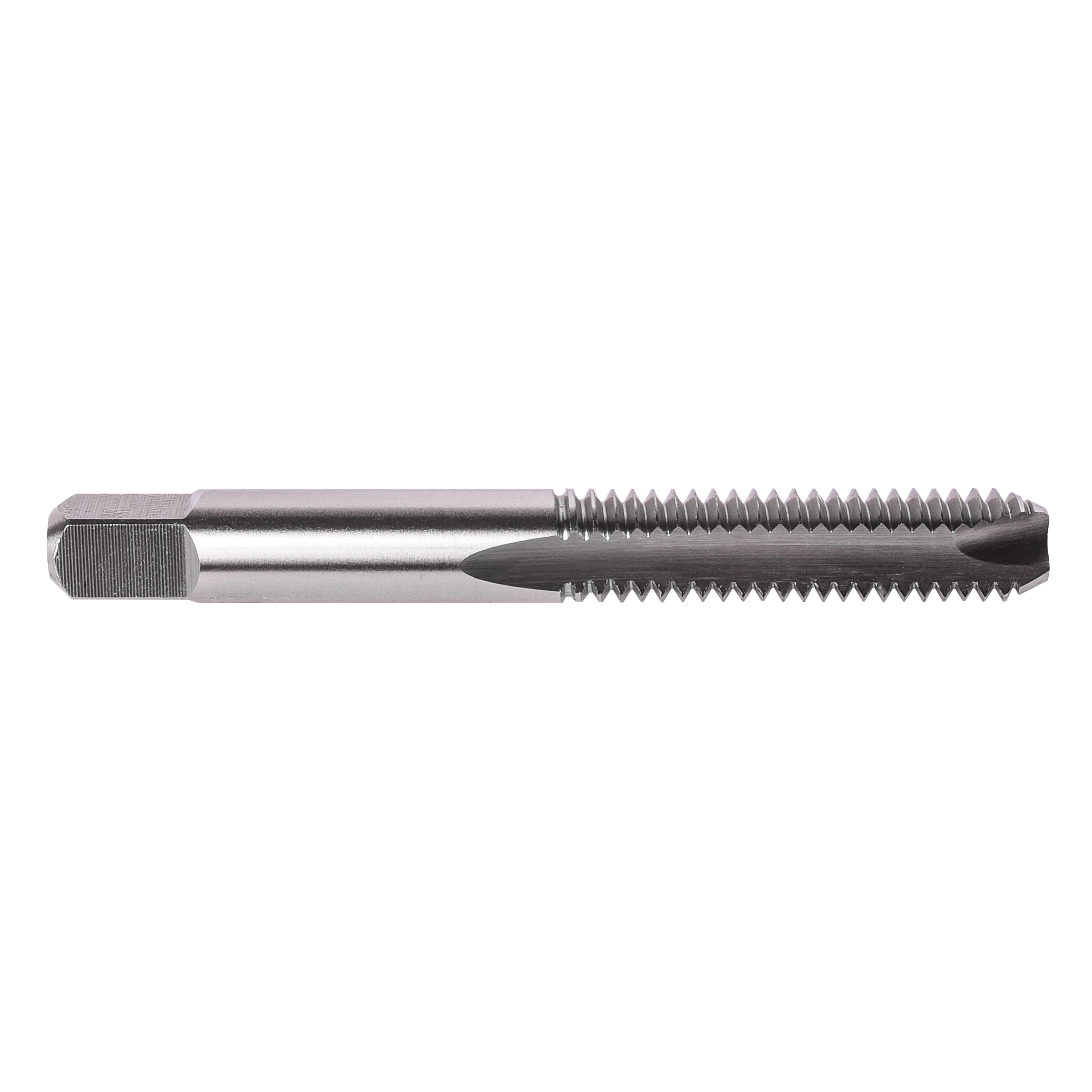

Union Butterfield 6007771 1585NR Non-Relieved Union Butterfield Spiral Point Machine Tap, Right Hand Cutting, 5/8-18 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Bright, HSS
Factory Order
Union Butterfield Union Butterfield Spiral Point Machine Tap, Non-Relieved, Measurement System: Imperial, UNF, 5/8-18, Plug Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 2B/3B, Right Hand Cutting, 1-13/16 in Thread Length, 3-13/16 in Overall Length, 0.48 in Shank Dia, Steel, Stainless Steel, Cast Iron, Titanium, Copper, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit
Features
- Feature concentric threads with no pitch diameter relief
- These taps are particularly recommended for applications requiring close gauging fits and in older equipment that is not sufficiently rigid to accommodate the free cutting action of the regular 1534/1585 series
- Sizes in bold font indicate the most commonly used flute and H limit for that size
Specifications
ApplicationFor through hole applications
Chamfer TypePlug
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Cast Iron, Titanium, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes3
Overall Length3-13/16 in
Series1585NR
Shank Diameter0.48 in
Thread Length1-13/16 in
Thread LimitH3
Thread Size5/8-18
Thread StandardUNF
TypeNon-Relieved
