Union Butterfield UTD 1012693

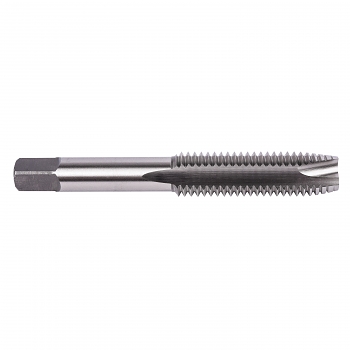

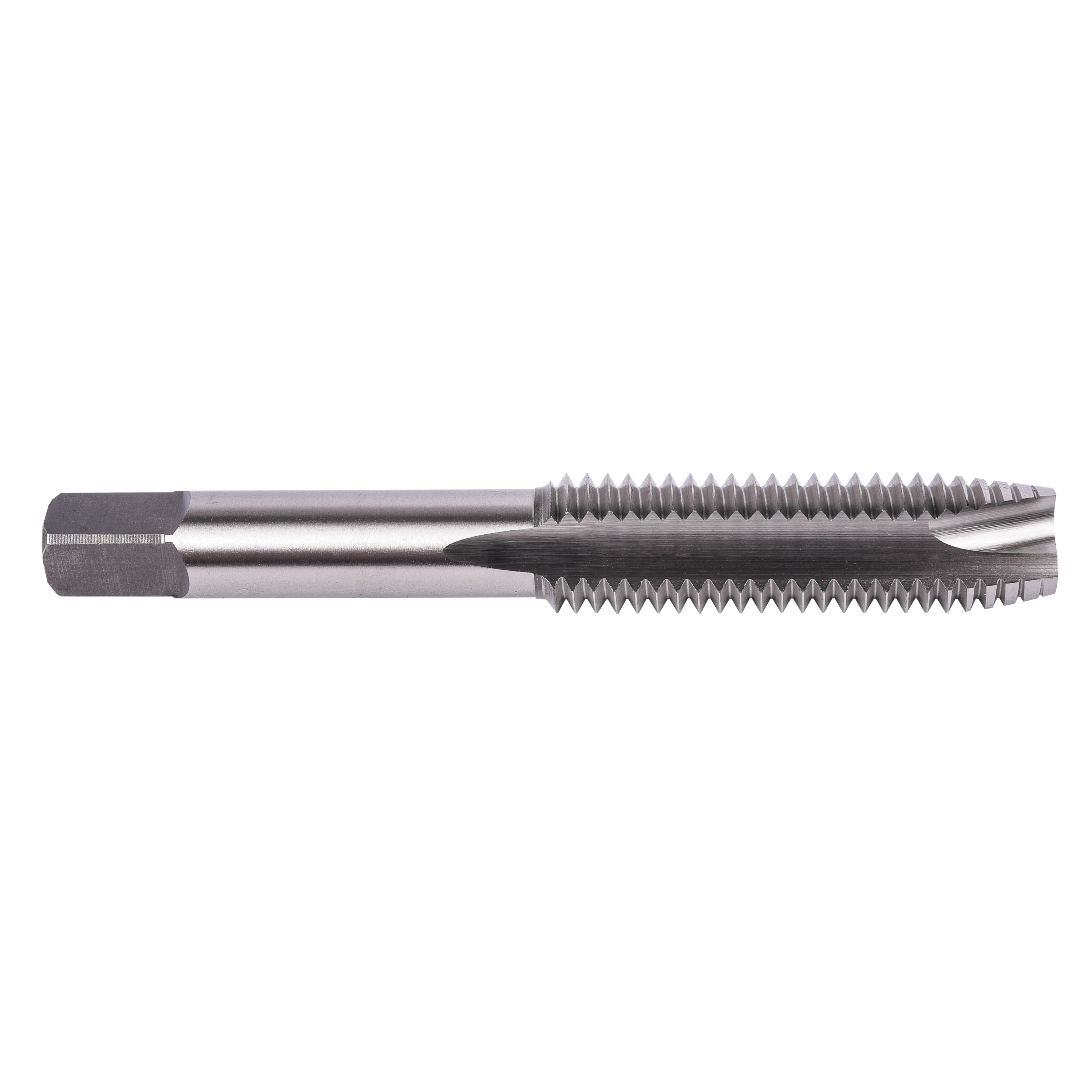

Union Butterfield 6008733 1785M Relieved Spiral Point Tap, Right Hand Cutting, M16x2 Thread, D7 Thread Limit, Plug Chamfer, 3 Flutes, Bright, HSS
Invoice description:
1785m: Spiral Point Prod Uc Utd 1012693 Ubc 1
Factory Order
Union Butterfield Spiral Point Tap, Relieved, Series: 1785M, Measurement System: Metric, M16x2 Thread, Plug Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting Direction, 1-13/16 in Thread Length, 3-13/16 in Overall Length, 0.48 in Shank Diameter, Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, D7 Thread Limit
Features
- Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials
- The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes
- The 1785M style features eccentrically relieved threads with full pitch diameter relief
- These taps are extremely free cutting, resulting in longer tool life
- The use of rigid tapping equipment is highly recommended with this style of tap
- Bright finish flutes improve chip flow in soft and non-ferrous materials
Specifications
ApplicationFor through hole applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemMetric
Number of Flutes3
Overall Length3-13/16 in
Series1785M
Shank Diameter0.48 in
Thread Length1-13/16 in
Thread LimitD7
Thread SizeM16x2
TypeRelieved
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
