Union Butterfield UTD 1012372

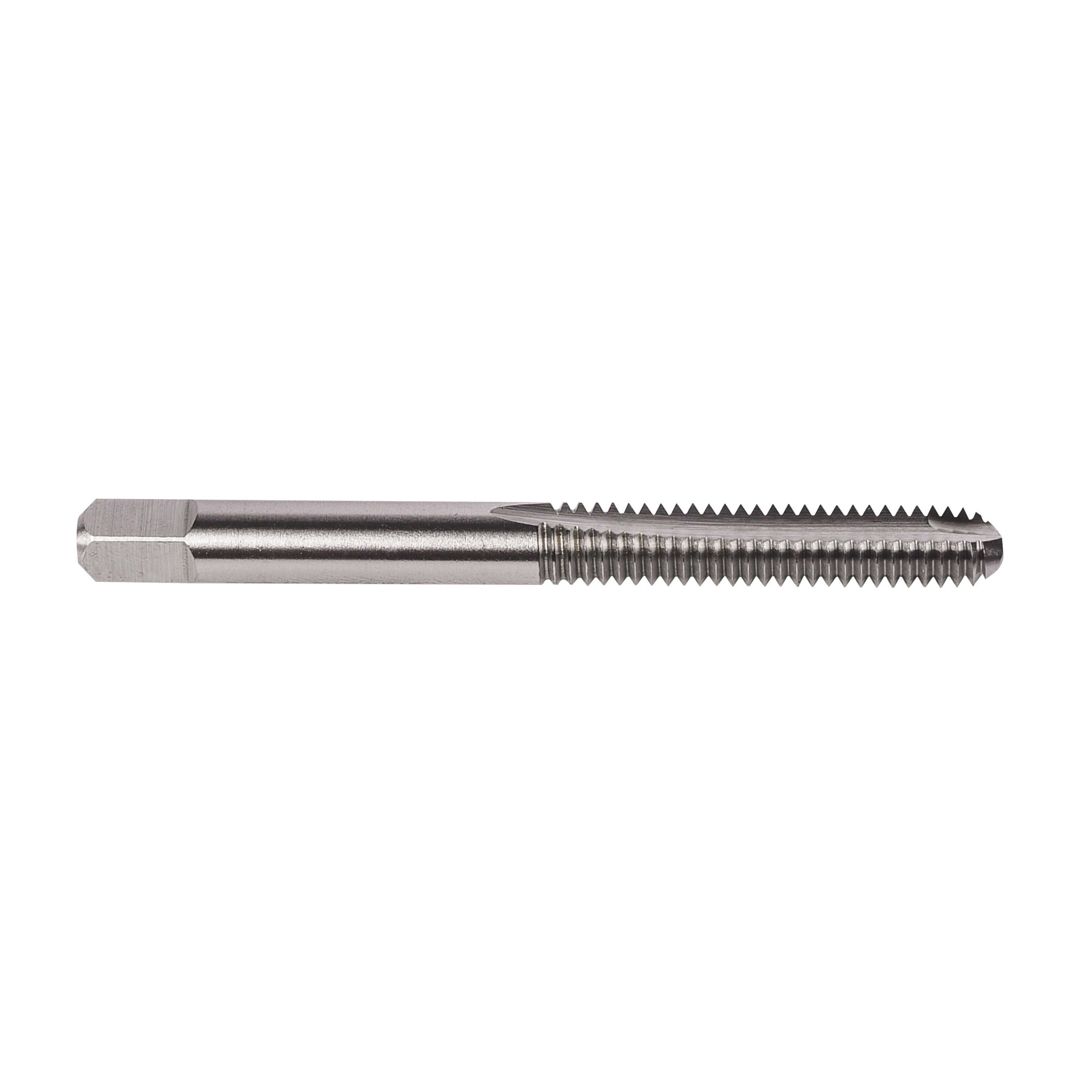

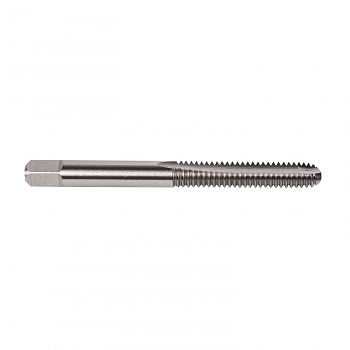

Union Butterfield 6006803 1534 Relieved Union Butterfield Spiral Point Machine Tap, Right Hand Cutting, #8-32 Thread, H2 Thread Limit, Bottoming Chamfer, 2 Flutes, Bright, HSS
Invoice description:
1534 Bottoming Chamfer: Sp Utd 1012372 Ubc 1
Factory Order
Union Butterfield Union Butterfield Spiral Point Machine Tap, Relieved, Series: Supreme TC122, Measurement System: Imperial, UNC, #8-32, Bottoming Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 2B/3B, Right Hand Cutting, 3/4 in Thread Length, 2-1/8 in Overall Length, 0.168 in Shank Dia, Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, H2 Thread Limit
Features
- Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials
- The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes
- The 1534 style features eccentrically relieved threads with full pitch diameter relief
- These taps are extremely free cutting, resulting in longer tool life
- The use of rigid tapping equipment is highly recommended with this style of tap
- Bright finish flutes improve chip flow in soft and non-ferrous materials
Specifications
ApplicationFor through hole applications
Chamfer TypeBottoming
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes2
Overall Length2-1/8 in
Series1534
Shank Diameter0.168 in
Thread Length3/4 in
Thread LimitH2
Thread Size#8-32
Thread StandardUNC
TypeRelieved
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
