Union Butterfield UTD 1011808

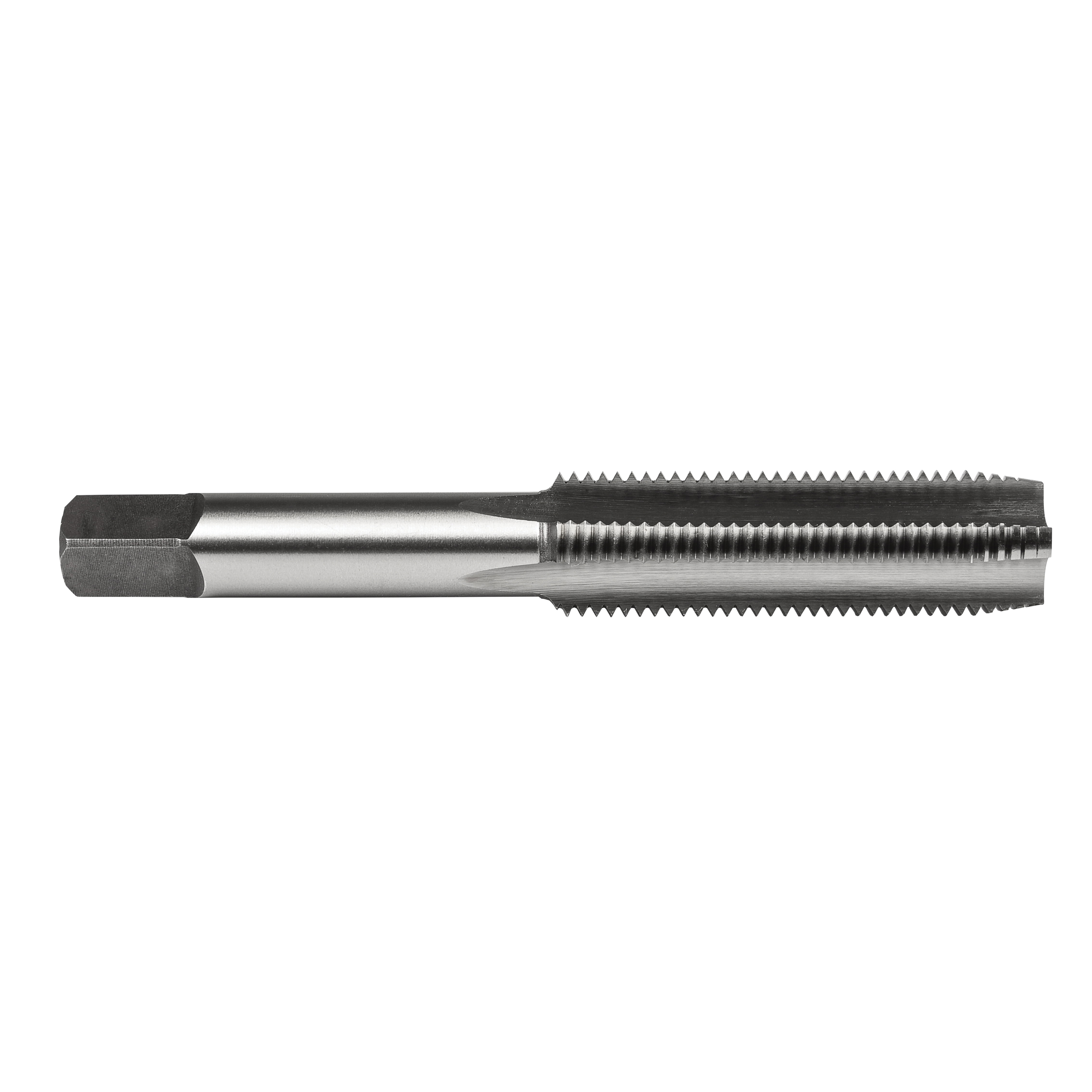

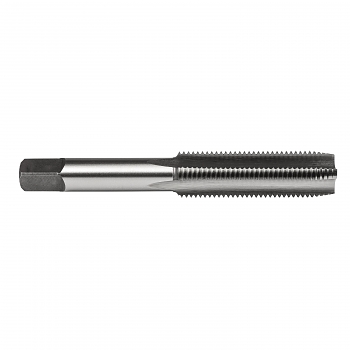

Union Butterfield 6006657 1500L General Purpose Union Butterfield Straight Flute Hand Tap, Left Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Bright, HSS
Invoice description:
1500l: Straight Flute Pr Od Utd 1011808 Ubc 1
Factory Order
Union Butterfield Union Butterfield Straight Flute Hand Tap, General Purpose, Series: LV533, Measurement System: Imperial, UNC, 5/8-11, Plug Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 3B, Left Hand Cutting, 1-13/16 in Thread Length, 3-13/16 in Overall Length, 0.48 in Shank Dia, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit
Features
- Similar in design to the standard 1500 series but finished with left hand threads, which when viewed axially, wind in a counter-clockwise and receding direction
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypePlug
Class of Fit3B
Cutting DirectionLeft Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes4
Overall Length3-13/16 in
Series1500L
Shank Diameter0.48 in
Thread Length1-13/16 in
Thread LimitH3
Thread Size5/8-11
Thread StandardUNC
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
