Union Butterfield UTD 1011764

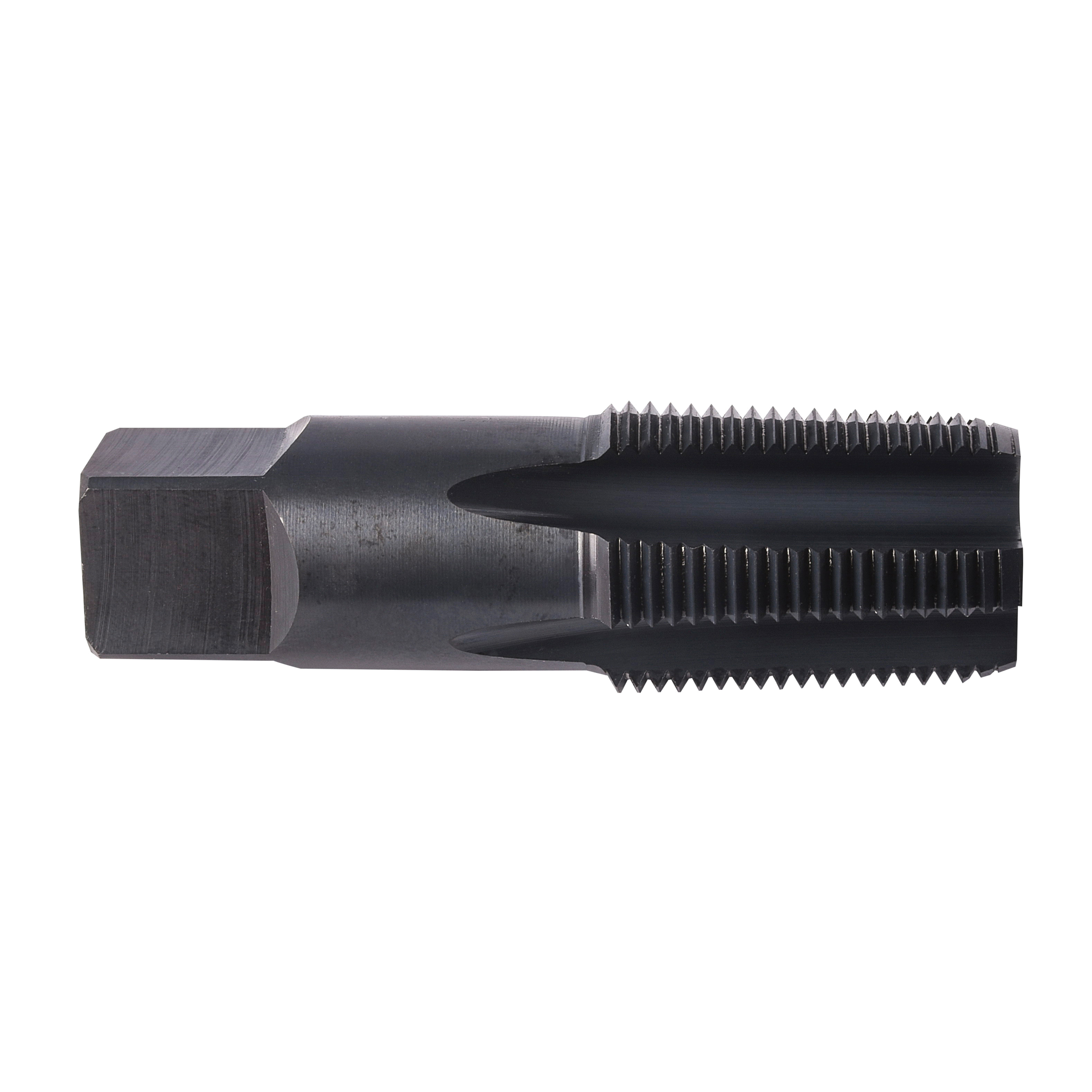

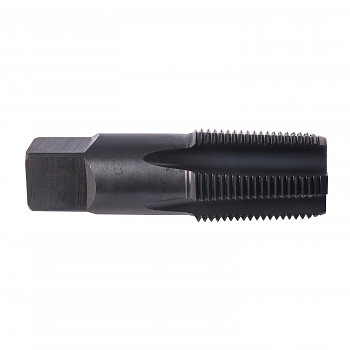

Union Butterfield 6007165 1544 Low Rake Straight Flute Pipe Tap, 1/2-14 Thread
Invoice description:
1544: Production Taper P Ip Utd 1011764 Ubc 1
Factory Order
Union Butterfield Pipe Tap, Low Rake Straight Flute, Series: 1544, Measurement System: Imperial, 1/2-14 Thread, NPT Thread Standard, Tapered Chamfer, 1-3/8 in Thread Length, 3-1/8 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.688 in Shank Diameter, 0.515 in Square, HSS, Nitride
Features
- Low rake heavy duty for cast iron and heat treated alloy steels
- Nitride surface treatment reduces wear and chip welding
- Manufactured with a cutting geometry specifically for gray cast irons producing broken chips
- The design makes these taps also appropriate for non-metallics, cast brass and other brass materials producing broken, powdery chips
Specifications
ApplicationFor blind and through hole applications
Chamfer TypeTapered
Cutting DirectionRight Hand
Finish/CoatingNitride
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Overall Length3-1/8 in
Series1544
Shank Diameter0.688 in
Square Size0.515 in
Thread Length1-3/8 in
Thread Size1/2-14
Thread StandardNPT
TypeLow Rake Straight Flute
Additional Information
Standards/ApprovalANSI B94.9|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
