Union Butterfield UTD 1011268

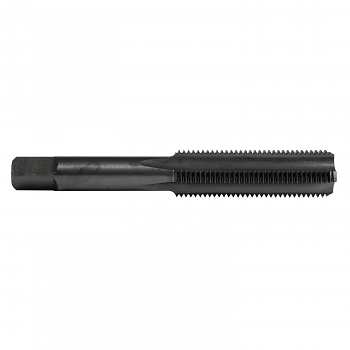

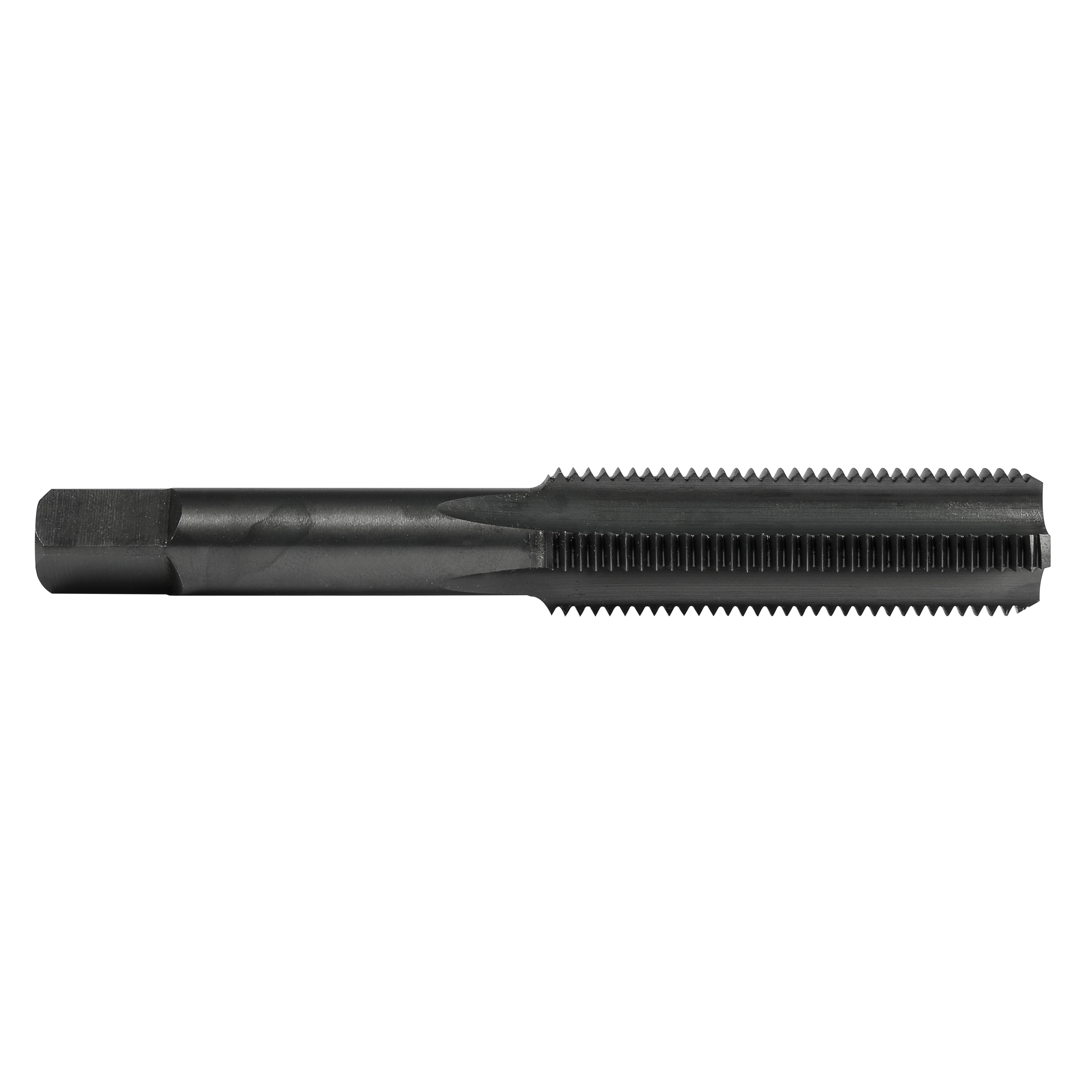

Union Butterfield Union Butterfield Straight Flute Hand Tap, Series: 2106C, Measurement System: Imperial, UNC, 7/16-14, Plug Chamfer, 4 Flutes, HSS, Nitride/Steam Oxide, Class of Fit: 2B, Right Hand Cutting, 1-7/16 in Thread Length, 3-5/32 in Overall Length, 0.323 in Shank Dia, Cast Iron, Copper and Synthetic Materials Material Application, H5 Thread Limit

• Features

• Designed for through or blind hole tapping with a specific cutting geometry for gray cast irons and those materials producing broken chips
• Also ideal for non-metallics, cast brass and other brass materials producing broken powdery chips
• Nitride and steam oxide coating reduces wear and chip welding in abrasive materials
• Nitriding is a process that is used to increase the hardness and wear resistance of the surface of a tool
• It is particularly suitable for taps that are used on abrasive materials such as cast iron, bakelite
• Nitriding is used on twist drills when it is desirable to increase the strength and wear resistance of the cylindrical lands
• Steam tempering gives a strongly adhering blue oxide surface that acts to retain cutting fluid and prevent chip to tool welding, thereby counteracting the formation of a built-up edge
• Steam tempering can be applied to any bright tool but is most effective on drills and taps
• A medium alloyed high speed steel that has good machinability and good performance
• HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
